• RHP MP3-1/2 Two Bolt Cast Iron Pillow Block and 3-1/2 Bore Grub Screw Insert
1 1

SKU: MP3.1/2-RHP

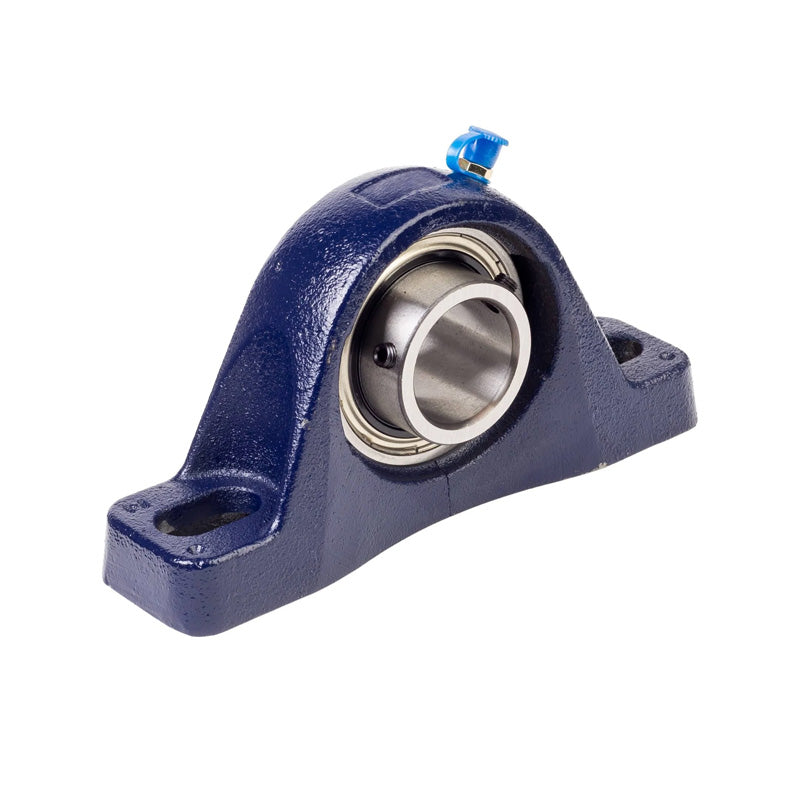

RHP MP3-1/2 Two Bolt Cast Iron Pillow Block and 3-1/2 Bore Grub Screw Insert

RHP MP3-1/2 Two Bolt Cast Iron Pillow Block and 3-1/2 Bore Grub Screw Insert
$563.08 ex VAT
$563.08 ex VAT
Sale Sold out

In stock

Price Break
10+ $377.16
20+ $355.97
30+ $351.73
40+ $347.50
50+ $343.26
75+ $339.02
100+ $317.83
200+ $313.59
250+ $309.36
500+ $305.12
1000+ $296.64

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
RHP - High Quality
Inside Diameter:
88.9mm = 3.5 (3-1/2) inch
Style:
MP
Bolt Hole Centres:
9.689-12.563 inch
Technical
Bore 3-1/2 inch
L 15 inch
H 4000 inch
H1 1.311 inch
H2 8.252 inch
J max 12.563 inch
J min 9.689 inch
G 1 inch
A 4.374 inch
A1 3.126 inch
B 3.781 inch
s 1.564 inch
d1 4.396 inch
Dynamic load Cr 96000 N
Static load Cor 71500 N
Rec max speed 1900 rpm
Weight 23.4 kg
Insert <a href="advanced_search_result.php?keywords=1090-3-1/2G+insonly">1090-3-1/2G Click Here</a>
Casting group 12
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
