SKU: MP3.15/16-RHP

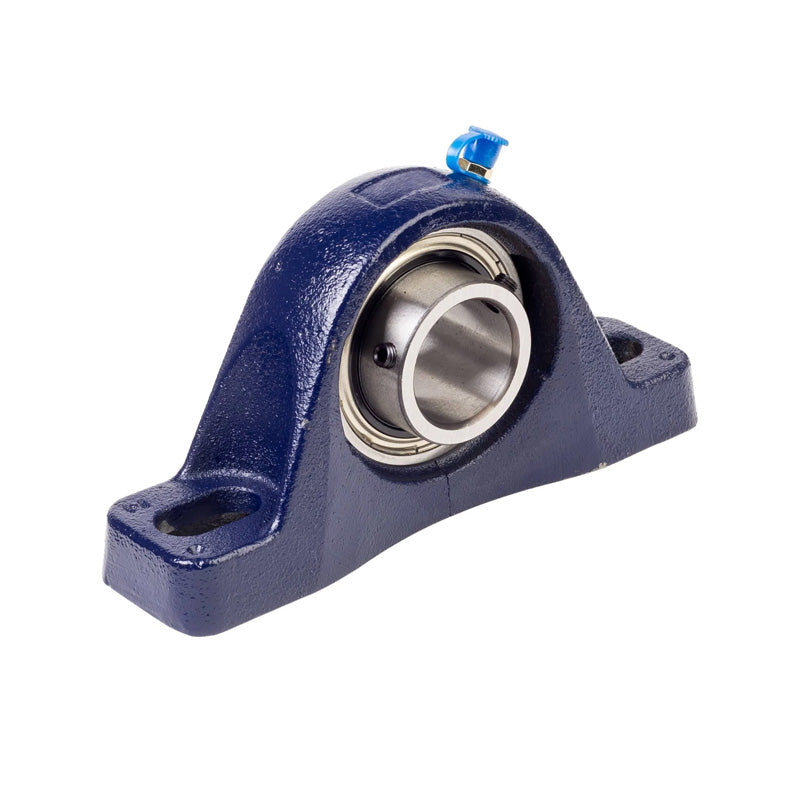

RHP MP3-15/16 Two Bolt Cast Iron Pillow Block and 3-15/16 Bore Grub Screw Insert

RHP MP3-15/16 Two Bolt Cast Iron Pillow Block and 3-15/16 Bore Grub Screw Insert
Regular price $844.47 ex VAT
Regular price Sale price $844.47 ex VAT
Sale Sold out

In stock

Price Break
10+ $565.65
20+ $533.87
30+ $527.51
40+ $521.16
50+ $514.80
75+ $508.45
100+ $476.67
200+ $470.31
250+ $463.96
500+ $457.60
1000+ $444.89
Quantity

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Bore 3-15/16 inch
L 17 inch
H 5 inch
H1 1.311 inch
H2 10 inch
J max 14.626 inch
J min 11.874 inch
G 1 inch
A 4.748 inch
A1 3.874 inch
B 4.625 inch
s 1.94 inch
d1 5.135 inch
Dynamic load Cr 157000 N
Static load Cor 122000 N
Rec max speed 1600 rpm
Weight 34.4 kg
Insert <a href="advanced_search_result.php?keywords=3095-3-15/16G+insonly">3095-3-15/16G Click Here</a>
Casting group 13
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
