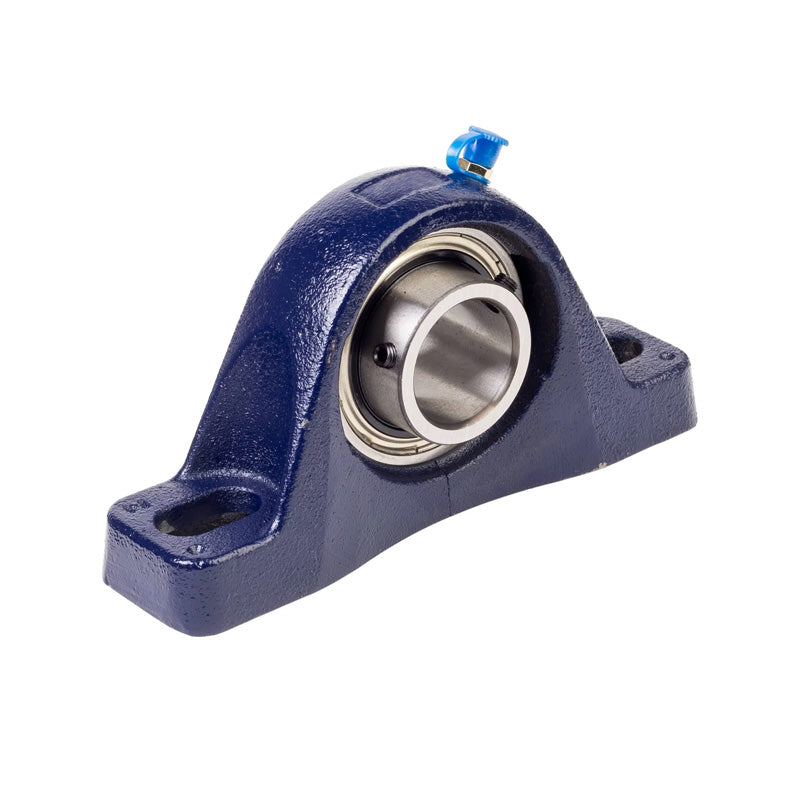

• RHP MP45 Two Bolt Cast Iron Pillow Block and 45mm Bore Grub Screw Insert
1 1

SKU: MP45-RHP

RHP MP45 Two Bolt Cast Iron Pillow Block and 45mm Bore Grub Screw Insert

RHP MP45 Two Bolt Cast Iron Pillow Block and 45mm Bore Grub Screw Insert
$109.02 ex VAT
$109.02 ex VAT
Sale Sold out

In stock

Price Break
10+ $73.03
20+ $68.92
30+ $68.10
40+ $67.28
50+ $66.46
75+ $65.64
100+ $61.54
200+ $60.72
250+ $59.90
500+ $59.08
1000+ $57.44

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
RHP - High Quality
Inside Diameter:
45mm
Style:
MP
Bolt Hole Centres:
145-172.5mm
Technical
Bore 45mm
L 222.2mm
H 58.72mm
H1 22.5mm
H2 116.7mm
J max 172.5mm
J min 145mm
G 16mm
A 60mm
A1 39.5mm
B 51.59mm
s 19.1mm
d1 62.2mm
Dynamic load Cr 35000 N
Static load Cor 23200 N
Rec max speed 3400 rpm
Weight 3.2 kg
Insert <a href="advanced_search_result.php?keywords=1050-45G+insonly">1050-45G Click Here</a>
Casting group 5
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
