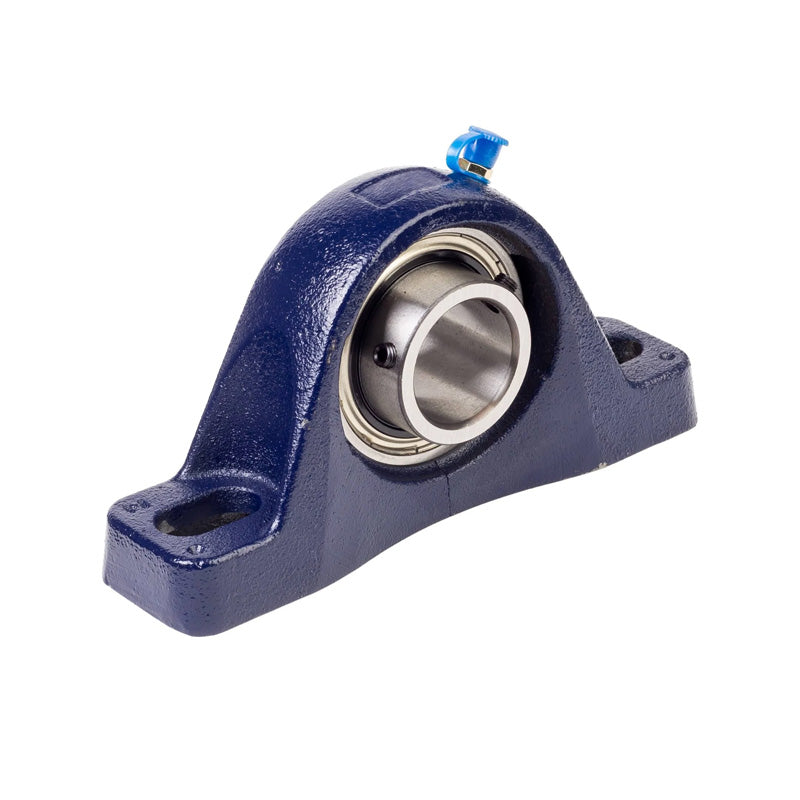

• RHP MP50 Two Bolt Cast Iron Pillow Block and 50mm Bore Grub Screw Insert
1 1

SKU: MP50-RHP

RHP MP50 Two Bolt Cast Iron Pillow Block and 50mm Bore Grub Screw Insert

RHP MP50 Two Bolt Cast Iron Pillow Block and 50mm Bore Grub Screw Insert
$137.02 ex VAT
$137.02 ex VAT
Sale Sold out

In stock

Price Break
10+ $91.78
20+ $86.62
30+ $85.59
40+ $84.56
50+ $83.53
75+ $82.50
100+ $77.34
200+ $76.31
250+ $75.28
500+ $74.25
1000+ $72.19

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
RHP - High Quality
Inside Diameter:
50mm
Style:
MP
Bolt Hole Centres:
162.5-178.5mm
Technical
Bore 50mm
L 219.5mm
H 63.5mm
H1 24.8mm
H2 129.5mm
J max 178.5mm
J min 162.5mm
G 16mm
A 60mm
A1 39.5mm
B 55.65mm
s 22.28mm
d1 68.81mm
Dynamic load Cr 43500 N
Static load Cor 29200 N
Rec max speed 3100 rpm
Weight 4 kg
Insert <a href="advanced_search_result.php?keywords=1055-50G+insonly">1055-50G Click Here</a>
Casting group 6
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
