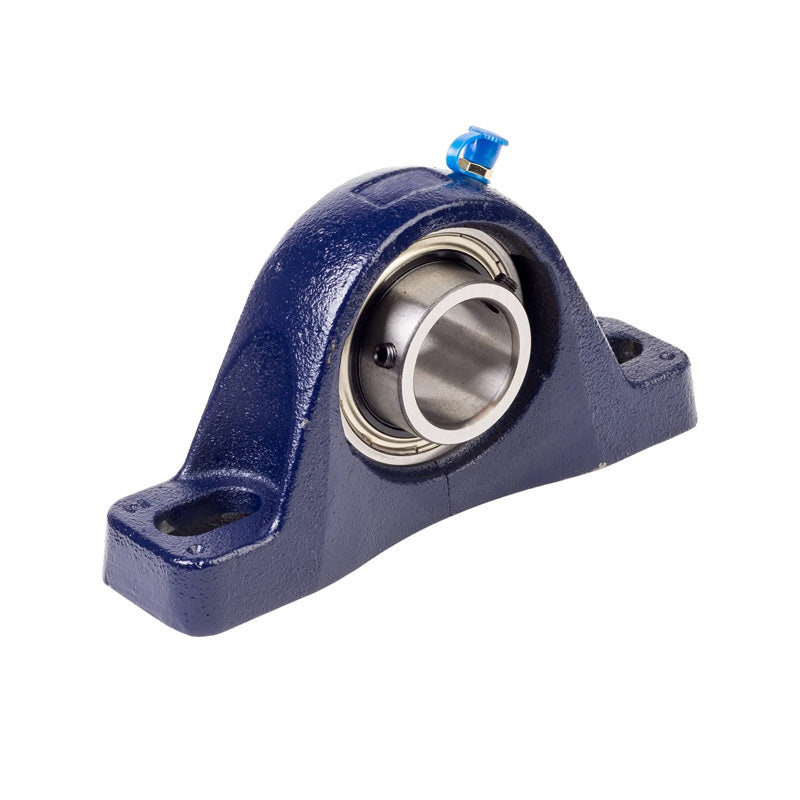

• RHP MP65 Two Bolt Cast Iron Pillow Block and 65mm Bore Grub Screw Insert
1 1

SKU: MP65-RHP

RHP MP65 Two Bolt Cast Iron Pillow Block and 65mm Bore Grub Screw Insert

RHP MP65 Two Bolt Cast Iron Pillow Block and 65mm Bore Grub Screw Insert
$293.95 ex VAT
$293.95 ex VAT
Sale Sold out

In stock

Price Break
10+ $196.89
20+ $185.83
30+ $183.62
40+ $181.41
50+ $179.19
75+ $176.98
100+ $165.92
200+ $163.71
250+ $161.49
500+ $159.28
1000+ $154.86

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
RHP - High Quality
Inside Diameter:
65mm
Style:
MP
Bolt Hole Centres:
206-255.6mm
Technical
Bore 65mm
L 330.2mm
H 88.9mm
H1 28.6mm
H2 177.8mm
J max 255.6mm
J min 206mm
G 24mm
A 88.9mm
A1 66.7mm
B 77.77mm
s 33.37mm
d1 92mm
Dynamic load Cr 66000 N
Static load Cor 49500 N
Rec max speed 2300 rpm
Weight 13.4 kg
Insert <a href="advanced_search_result.php?keywords=1075-65G+insonly">1075-65G Click Here</a>
Casting group 9
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
