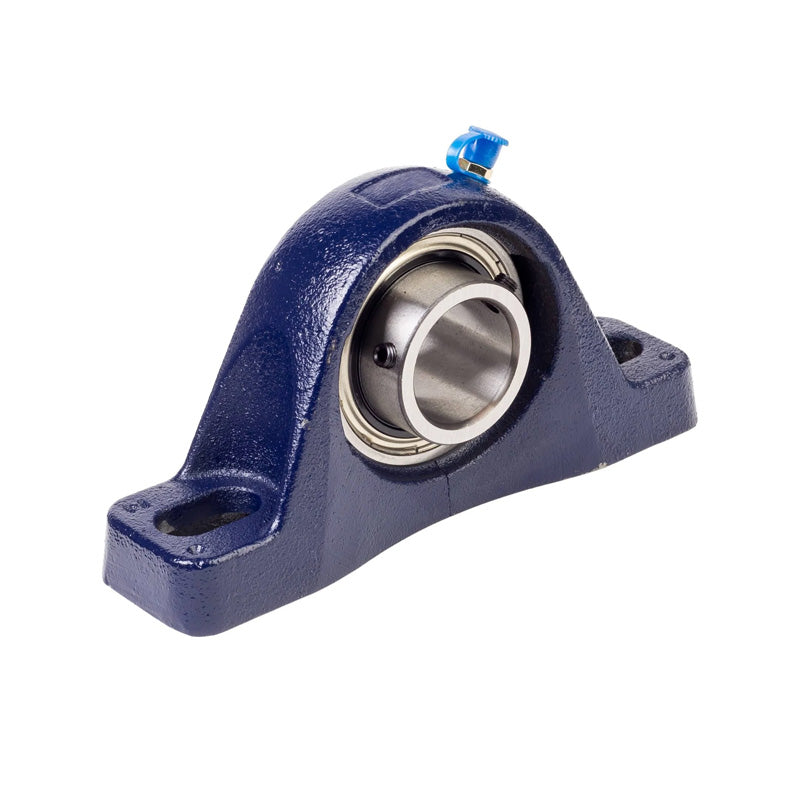

• RHP MP70 Two Bolt Cast Iron Pillow Block and 70mm Bore Grub Screw Insert
1 1

SKU: MP70-RHP

RHP MP70 Two Bolt Cast Iron Pillow Block and 70mm Bore Grub Screw Insert

RHP MP70 Two Bolt Cast Iron Pillow Block and 70mm Bore Grub Screw Insert
$382.84 ex VAT
$382.84 ex VAT
Sale Sold out

In stock

Price Break
10+ $256.44
20+ $242.03
30+ $239.15
40+ $236.27
50+ $233.39
75+ $230.50
100+ $216.10
200+ $213.22
250+ $210.33
500+ $207.45
1000+ $201.69

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
RHP - High Quality
Inside Diameter:
70mm
Style:
MP
Bolt Hole Centres:
8.11-10.063mm
Technical
Bore 70mm
L 13 inch
H 3.5 inch
H1 1.126 inch
H2 7 inch
J max 10.063 inch
J min 8.11 inch
G 1 inch
A 3.5 inch
A1 2.626 inch
B 3.062 inch
s 1.314 inch
d1 3.622 inch
Dynamic load Cr 66000 N
Static load Cor 49500 N
Rec max speed 2300 rpm
Weight 13.4 kg
Insert <a href="advanced_search_result.php?keywords=1075-70G+insonly">1075-70G Click Here</a>
Casting group 9
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
