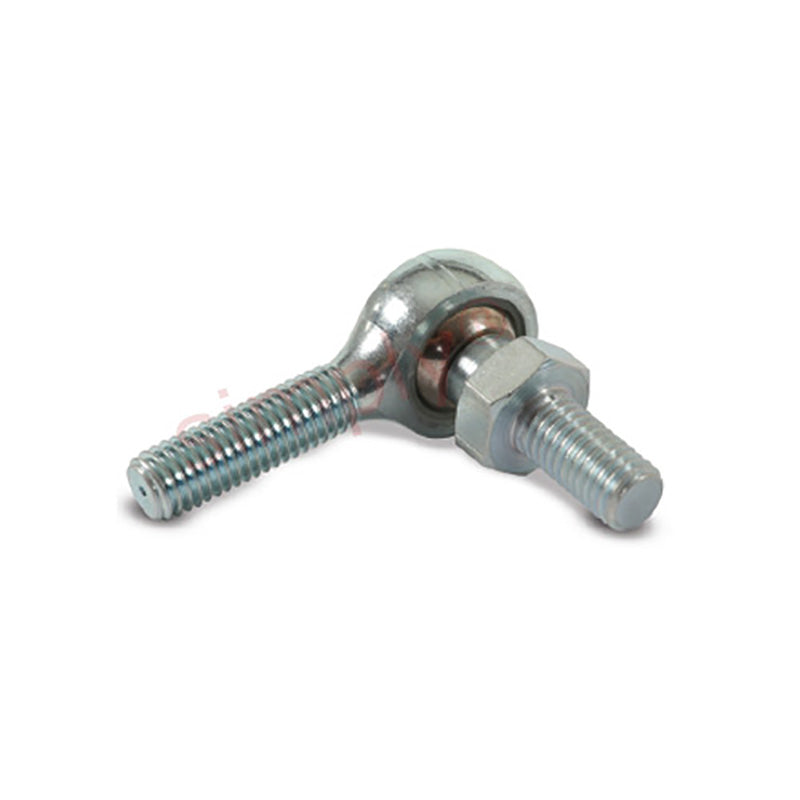

Branded MPL-05S Left Hand Imperial Steel / Nylon Lined Maintenance Free Studded Male Rod End 5/16 UNF Thread - Allow 7-10 Days

SKU: MPL-05S-MB

Branded MPL-05S Left Hand Imperial Steel / Nylon Lined Maintenance Free Studded Male Rod End 5/16 UNF Thread - Allow 7-10 Days

$18.54 ex VAT
$18.54
ex VAT
In stock

Quantity Price Breaks

10 $16.50
19 $15.57
29 $15.39
39 $15.20
49 $15.02
74 $14.83
99 $13.91
199 $13.72
249 $13.53
499 $13.35
999 $12.98
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
Branded MPL-05S Left Hand Imperial Steel / Nylon Lined Maintenance Free Studded Male Rod End 5/16 UNF Thread - Allow 7-10 Days
SKU: MPL-05S-MB

Branded MPL-05S Left Hand Imperial Steel / Nylon Lined Maintenance Free Studded Male Rod End 5/16 UNF Thread - Allow 7-10 Days

$18.54 ex VAT
$18.54
ex VAT

Description

MPS Series Nylon Lined Studded Male Rod End: These studded MPS series are classed as maintenance free rod end bearings. They are self-lubricating general purpose male rod ends suitable for light to medium heavy industrial/mechanical load applications requiring low friction and good wear resistance, available in both metric and imperial bore and thread sizes. They have excellent moisture resistance and require no maintenance
Materials: Housing: Steel 230M07PB zinc plated white and blue passivate (silver/clear) and stainless steel 303L. Race: GR-nylon LV-3H. Ball: Bearing steel 100Cr6, case hardened and electroless nickel plated and stainless steel 440C and SAE660. Stud: Steel 230M07PB zinc plated white and blue passivate (silver/ clear) and stainless steel 303L.
Operating Temperature Range: Operating temperature range -30c to +170c
Benefits: Low friction, self-lubricating, good wear resistance, excellent moisture resistance.

Technical

Stud size = 5/16 UNF
Thread = 5/16 UNF
A = 0.687 inch
B = 0.547 inch
C = 0.594 inch
K = 0.437 inch
Static load = 3190 N
