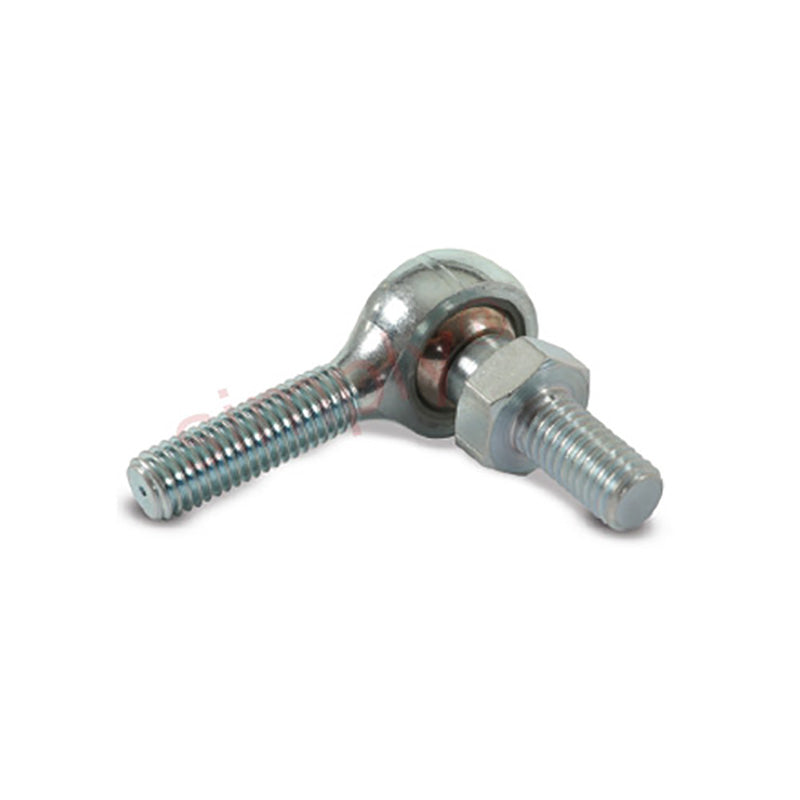

Branded MPL-07-6S Left Hand Imperial Steel / Nylon Lined Maintenance Free Studded Male Rod End 7/16 UNF Thread - Allow 7-10 Days

SKU: MPL-07-6S-MB

Branded MPL-07-6S Left Hand Imperial Steel / Nylon Lined Maintenance Free Studded Male Rod End 7/16 UNF Thread - Allow 7-10 Days

$45.97 ex VAT
$45.97
ex VAT
Not in stock

Quantity Price Breaks

10 $40.91
19 $38.61
29 $38.16
39 $37.70
49 $37.24
74 $36.78
99 $34.48
199 $34.02
249 $33.56
499 $33.10
999 $32.18
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
Branded MPL-07-6S Left Hand Imperial Steel / Nylon Lined Maintenance Free Studded Male Rod End 7/16 UNF Thread - Allow 7-10 Days
SKU: MPL-07-6S-MB

Branded MPL-07-6S Left Hand Imperial Steel / Nylon Lined Maintenance Free Studded Male Rod End 7/16 UNF Thread - Allow 7-10 Days

$45.97 ex VAT
$45.97
ex VAT

Description

MPS Series Nylon Lined Studded Male Rod End: These studded MPS series are classed as maintenance free rod end bearings. They are self-lubricating general purpose male rod ends suitable for light to medium heavy industrial/mechanical load applications requiring low friction and good wear resistance, available in both metric and imperial bore and thread sizes. They have excellent moisture resistance and require no maintenance
Materials: Housing: Steel 230M07PB zinc plated white and blue passivate (silver/clear) and stainless steel 303L. Race: GR-nylon LV-3H. Ball: Bearing steel 100Cr6, case hardened and electroless nickel plated and stainless steel 440C and SAE660. Stud: Steel 230M07PB zinc plated white and blue passivate (silver/ clear) and stainless steel 303L.
Operating Temperature Range: Operating temperature range -30c to +170c
Benefits: Low friction, self-lubricating, good wear resistance, excellent moisture resistance.

Technical

Stud size = 3/8 UNF
Thread = 7/16 UNF
A = 1.125 inch
B = 0.843 inch
C = 1 inch
K = 0.625 inch
Static load = 4240 N
