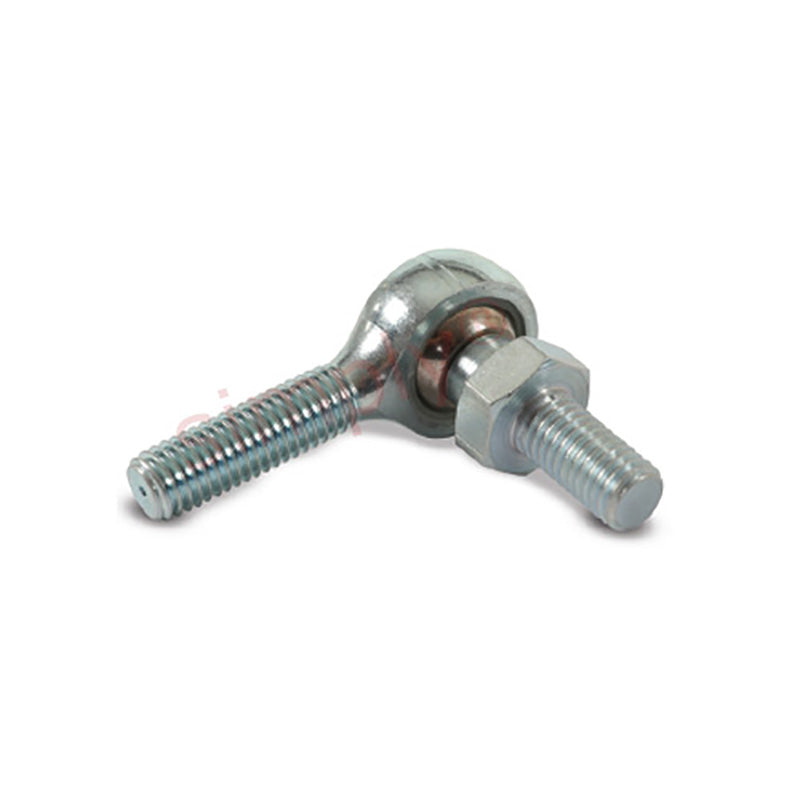

Branded MPL-M05S Left Hand Metric Steel / Nylon Lined Maintenance Free Studded Male Rod End M5x0.8 Thread

SKU: MPL-M05S-MB

Branded MPL-M05S Left Hand Metric Steel / Nylon Lined Maintenance Free Studded Male Rod End M5x0.8 Thread

$14.50 ex VAT
$14.50
ex VAT
In stock

Quantity Price Breaks

10 $12.91
19 $12.18
29 $12.04
39 $11.89
49 $11.75
74 $11.60
99 $10.88
199 $10.73
249 $10.59
499 $10.44
999 $10.15
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
Branded MPL-M05S Left Hand Metric Steel / Nylon Lined Maintenance Free Studded Male Rod End M5x0.8 Thread
SKU: MPL-M05S-MB

Branded MPL-M05S Left Hand Metric Steel / Nylon Lined Maintenance Free Studded Male Rod End M5x0.8 Thread

$14.50 ex VAT
$14.50
ex VAT

Description

MPS Series Nylon Lined Studded Male Rod End: These studded MPS series are classed as maintenance free rod end bearings. They are self-lubricating general purpose male rod ends suitable for light to medium heavy industrial/mechanical load applications requiring low friction and good wear resistance, available in both metric and imperial bore and thread sizes. They have excellent moisture resistance and require no maintenance
Materials: Housing: Steel 230M07PB zinc plated white and blue passivate (silver/clear) and stainless steel 303L. Race: GR-nylon LV-3H. Ball: Bearing steel 100Cr6, case hardened and electroless nickel plated and stainless steel 440C and SAE660. Stud: Steel 230M07PB zinc plated white and blue passivate (silver/ clear) and stainless steel 303L.
Operating Temperature Range: Operating temperature range -30c to +170c
Benefits: Low friction, self-lubricating, good wear resistance, excellent moisture resistance.

Technical

Stud size = M5
Thread = M5x0.8
A = 10mm
B = 10mm
C = 8mm
K = 9mm
Static load = 1200 N
