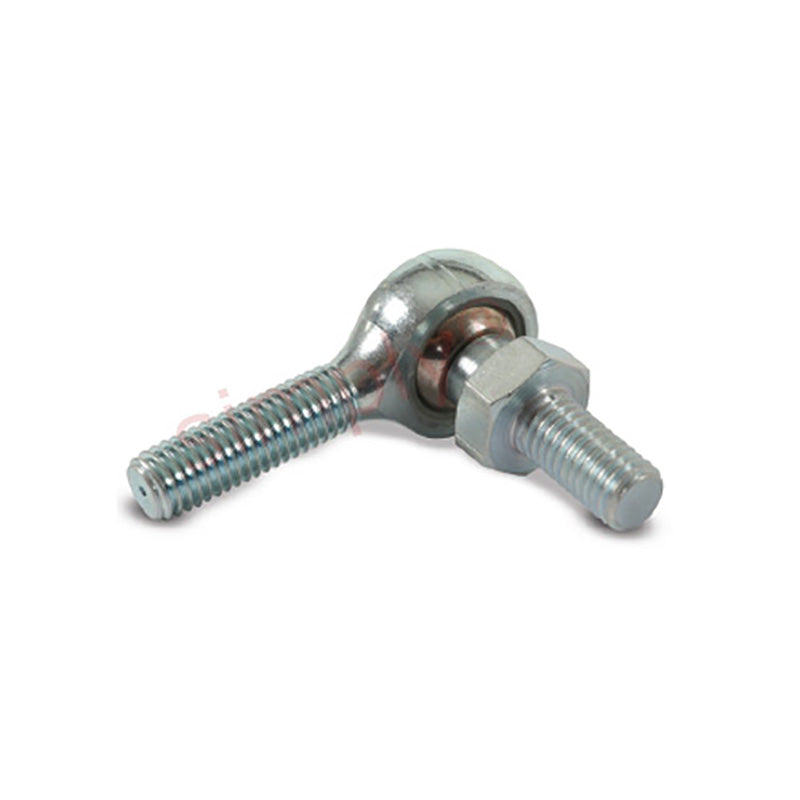

Branded MPL-M08S Left Hand Metric Steel / Nylon Lined Maintenance Free Studded Male Rod End M8x1.25 Thread

SKU: MPL-M08S-MB

Branded MPL-M08S Left Hand Metric Steel / Nylon Lined Maintenance Free Studded Male Rod End M8x1.25 Thread

$15.44 ex VAT
$15.44
ex VAT
In stock

Quantity Price Breaks

10 $13.74
19 $12.97
29 $12.82
39 $12.66
49 $12.51
74 $12.35
99 $11.58
199 $11.43
249 $11.27
499 $11.12
999 $10.81
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
Branded MPL-M08S Left Hand Metric Steel / Nylon Lined Maintenance Free Studded Male Rod End M8x1.25 Thread
SKU: MPL-M08S-MB

Branded MPL-M08S Left Hand Metric Steel / Nylon Lined Maintenance Free Studded Male Rod End M8x1.25 Thread

$15.44 ex VAT
$15.44
ex VAT

Description

MPS Series Nylon Lined Studded Male Rod End: These studded MPS series are classed as maintenance free rod end bearings. They are self-lubricating general purpose male rod ends suitable for light to medium heavy industrial/mechanical load applications requiring low friction and good wear resistance, available in both metric and imperial bore and thread sizes. They have excellent moisture resistance and require no maintenance
Materials: Housing: Steel 230M07PB zinc plated white and blue passivate (silver/clear) and stainless steel 303L. Race: GR-nylon LV-3H. Ball: Bearing steel 100Cr6, case hardened and electroless nickel plated and stainless steel 440C and SAE660. Stud: Steel 230M07PB zinc plated white and blue passivate (silver/ clear) and stainless steel 303L.
Operating Temperature Range: Operating temperature range -30c to +170c
Benefits: Low friction, self-lubricating, good wear resistance, excellent moisture resistance.

Technical

Stud size = M8
Thread = M8x1.25
A = 16mm
B = 16mm
C = 14mm
K = 13mm
Static load = 3190 N
