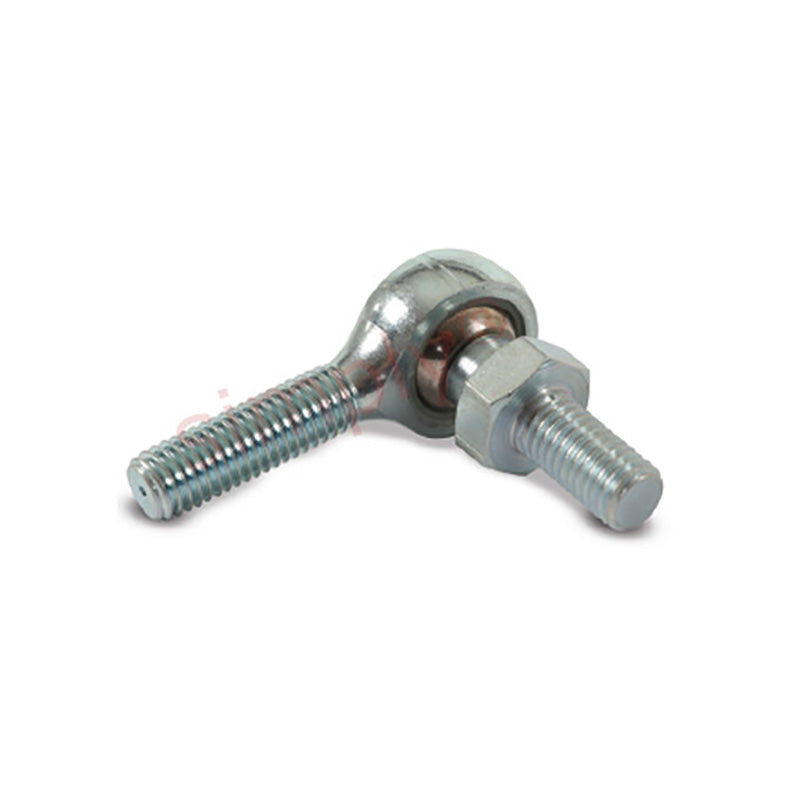

• Branded MPL-M12-10S Left Hand Metric Steel / Nylon Lined Maintenance Free Studded Male Rod End M12x1.75 Thread - Allow 7-10 Days
1 1

SKU: MPL-M12-10S-MB

Branded MPL-M12-10S Left Hand Metric Steel / Nylon Lined Maintenance Free Studded Male Rod End M12x1.75 Thread - Allow 7-10 Days

Branded MPL-M12-10S Left Hand Metric Steel / Nylon Lined Maintenance Free Studded Male Rod End M12x1.75 Thread - Allow 7-10 Days
$45.43 ex VAT
$45.43 ex VAT
Sale Sold out

In stock

Price Break
10+ $30.43
19+ $28.72
29+ $28.37
39+ $28.03
49+ $27.69
74+ $27.35
99+ $25.64
199+ $25.30
249+ $24.96
499+ $24.61
999+ $23.93

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

MPS Series Nylon Lined Studded Male Rod End: These studded MPS series are classed as maintenance free rod end bearings. They are self-lubricating general purpose male rod ends suitable for light to medium heavy industrial/mechanical load applications requiring low friction and good wear resistance, available in both metric and imperial bore and thread sizes. They have excellent moisture resistance and require no maintenance
Materials: Housing: Steel 230M07PB zinc plated white and blue passivate (silver/clear) and stainless steel 303L. Race: GR-nylon LV-3H. Ball: Bearing steel 100Cr6, case hardened and electroless nickel plated and stainless steel 440C and SAE660. Stud: Steel 230M07PB zinc plated white and blue passivate (silver/ clear) and stainless steel 303L.
Operating Temperature Range: Operating temperature range -30c to +170c
Benefits: Low friction, self-lubricating, good wear resistance, excellent moisture resistance.
Brand / Quality:
Major Brand - High Quality
Thread Size:
M12x1.75
Thread M / F:
Male
Thread Direction:
Left Hand
Material:
Nylon Lined
Technical
Stud size M10
Thread M12x1.75
A 24mm
B 24mm
C 21mm
K 19mm
Static load 4240 N
