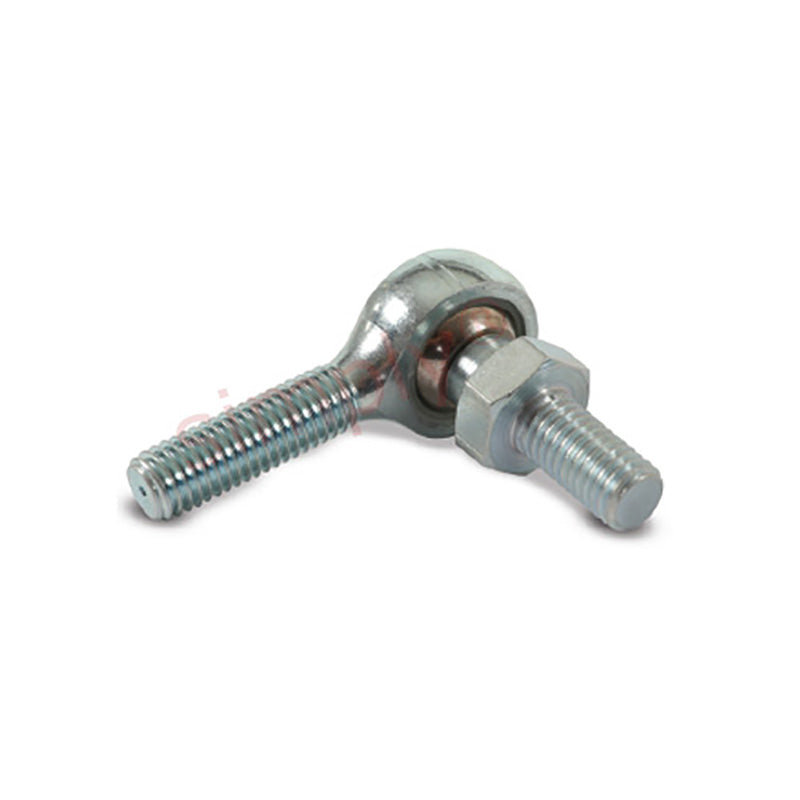

Branded MPL-M12S Left Hand Metric Steel / Nylon Lined Maintenance Free Studded Male Rod End M12x1.75 Thread

SKU: MPL-M12S-MB

Branded MPL-M12S Left Hand Metric Steel / Nylon Lined Maintenance Free Studded Male Rod End M12x1.75 Thread

$25.97 ex VAT
$25.97
ex VAT
In stock

Quantity Price Breaks

10 $23.11
19 $21.81
29 $21.56
39 $21.30
49 $21.04
74 $20.78
99 $19.48
199 $19.22
249 $18.96
499 $18.70
999 $18.18
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
Branded MPL-M12S Left Hand Metric Steel / Nylon Lined Maintenance Free Studded Male Rod End M12x1.75 Thread
SKU: MPL-M12S-MB

Branded MPL-M12S Left Hand Metric Steel / Nylon Lined Maintenance Free Studded Male Rod End M12x1.75 Thread

$25.97 ex VAT
$25.97
ex VAT

Description

MPS Series Nylon Lined Studded Male Rod End: These studded MPS series are classed as maintenance free rod end bearings. They are self-lubricating general purpose male rod ends suitable for light to medium heavy industrial/mechanical load applications requiring low friction and good wear resistance, available in both metric and imperial bore and thread sizes. They have excellent moisture resistance and require no maintenance
Materials: Housing: Steel 230M07PB zinc plated white and blue passivate (silver/clear) and stainless steel 303L. Race: GR-nylon LV-3H. Ball: Bearing steel 100Cr6, case hardened and electroless nickel plated and stainless steel 440C and SAE660. Stud: Steel 230M07PB zinc plated white and blue passivate (silver/ clear) and stainless steel 303L.
Operating Temperature Range: Operating temperature range -30c to +170c
Benefits: Low friction, self-lubricating, good wear resistance, excellent moisture resistance.

Technical

Stud size = M12
Thread = M12x1.75
A = 24mm
B = 24mm
C = 21mm
K = 19mm
Static load = 5720 N
