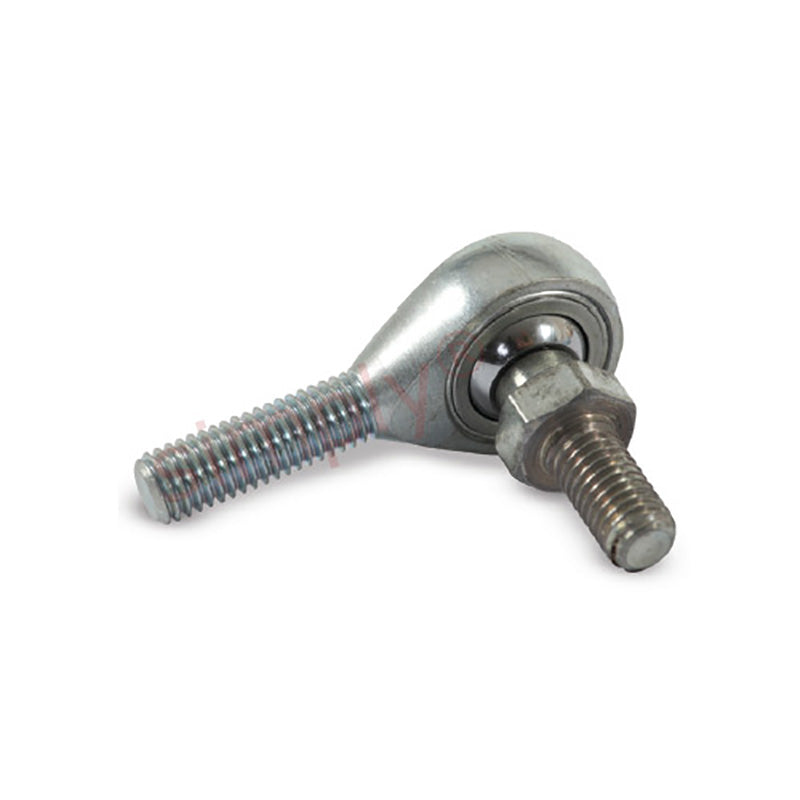

Branded MS-M10S Right Hand Metric Steel / PTFE Lined Maintenance Free Studded Male Rod End M10x1.5 Thread - Allow 7-10 Days

SKU: MS-M10S-MB

Branded MS-M10S Right Hand Metric Steel / PTFE Lined Maintenance Free Studded Male Rod End M10x1.5 Thread - Allow 7-10 Days

$35.49 ex VAT
$35.49
ex VAT
Equivalent to: POS10+STUD
In stock

Quantity Price Breaks

10 $31.59
19 $29.81
29 $29.46
39 $29.10
49 $28.75
74 $28.39
99 $26.62
199 $26.26
249 $25.91
499 $25.55
999 $24.84
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
Branded MS-M10S Right Hand Metric Steel / PTFE Lined Maintenance Free Studded Male Rod End M10x1.5 Thread - Allow 7-10 Days
SKU: MS-M10S-MB

Branded MS-M10S Right Hand Metric Steel / PTFE Lined Maintenance Free Studded Male Rod End M10x1.5 Thread - Allow 7-10 Days

$35.49 ex VAT
$35.49
ex VAT

Description

MSS Studded Series Maintenance Free Male Rod Ends: These studded steel on steel range of male rod ends incorporate a high strength PTFE bronze mesh between the ball and the liner material, suitable for high shock loads and medium to heavy mechanical load applications requiring low friction, available in both metric and imperial bore thread sizes, they do not require maintenance.
Materials: Housing and inner ring: 230M07PB steel zinc plated white and blue passivate (silver/clear) and stainless steel 303L. Liner: High strength PTFE bronze mesh composite. Ball: Bearing steel 100Cr6, heat treated, polished & electroless nickel plated and stainless steel 440C
Operating Temperature Range: Operating temperature range -200c to + 260c
Benefits: High shock loads, extended wear life, no maintenance

Technical

Stud size = M10
Thread = M10x1.5
A = 20mm
B = 20mm
C = 18mm
K = 17mm
Static load = 4240 N
