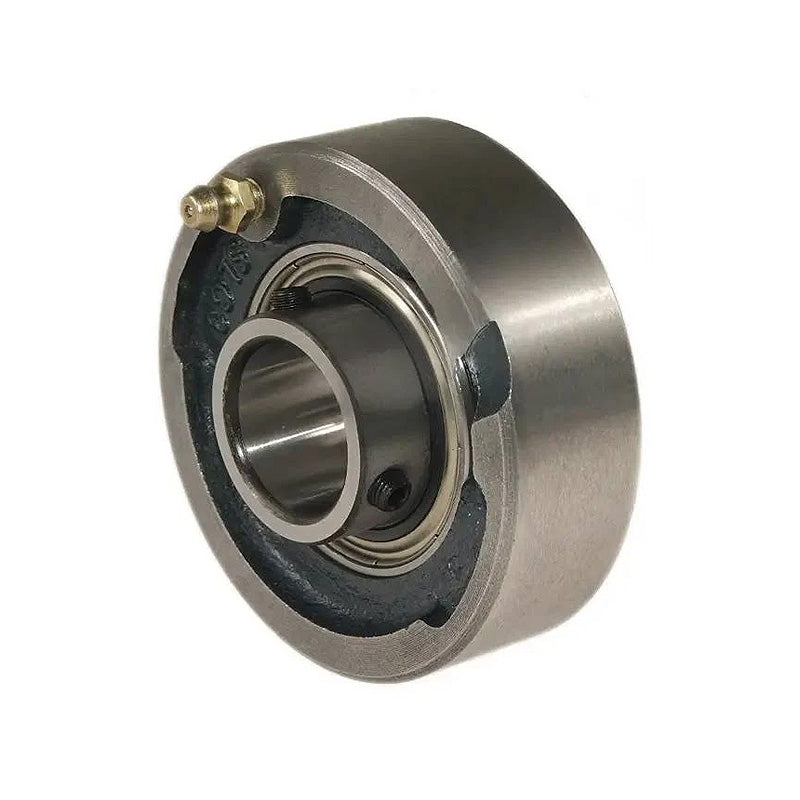

• RHP MSC1 Cast Iron Cartridge Unit with 1 inch Bore Insert 88.93mm Outside Diameter
1 1

SKU: MSC1-RHP

RHP MSC1 Cast Iron Cartridge Unit with 1 inch Bore Insert 88.93mm Outside Diameter

RHP MSC1 Cast Iron Cartridge Unit with 1 inch Bore Insert 88.93mm Outside Diameter
$66.99 ex VAT
$66.99 ex VAT
Sale Sold out

In stock

Price Break
10+ $44.87
20+ $42.35
30+ $41.85
40+ $41.34
50+ $40.84
75+ $40.33
100+ $37.81
200+ $37.31
250+ $36.81
500+ $36.30
1000+ $35.29

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
RHP - High Quality
Inside Diameter:
25.4mm = 1 inch
Outside Diameter:
88.93mm
Style:
MSC
Technical
Bore 1 inch
L 3.501 inch
A 1.094 inch
A1 1.422 inch
B 1.5 inch
s 0.627 inch
d1 1.575
Dynamic load Cr 19500 N
Static load Cor 11300 N
Rex max speed 5300 rpm
Weight 1.1 kg
Insert <a href="advanced_search_result.php?keywords=1030-1G+insonly">1030-1G Click Here</a>
Casting group 1
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
