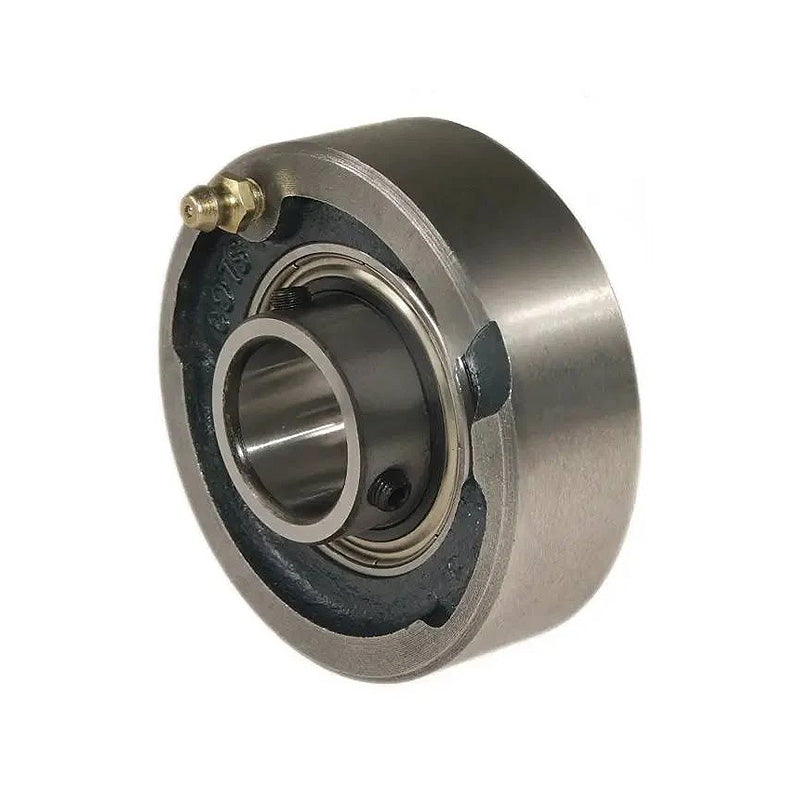

• RHP MSC2-1/4 Cast Iron Cartridge Unit with 2-1/4 inch Bore Insert 149.25mm Outside Diameter
1 1

SKU: MSC2.1/4-RHP

RHP MSC2-1/4 Cast Iron Cartridge Unit with 2-1/4 inch Bore Insert 149.25mm Outside Diameter

RHP MSC2-1/4 Cast Iron Cartridge Unit with 2-1/4 inch Bore Insert 149.25mm Outside Diameter
$204.79 ex VAT
$204.79 ex VAT
Sale Sold out

In stock

Price Break
10+ $137.18
20+ $129.47
30+ $127.93
40+ $126.39
50+ $124.85
75+ $123.31
100+ $115.60
200+ $114.06
250+ $112.52
500+ $110.98
1000+ $107.89

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
RHP - High Quality
Inside Diameter:
57.15mm = 2.25 (2-1/4) inch
Outside Diameter:
149.25mm
Style:
MSC
Technical
Bore 2-1/4 inch
L 5.876 inch
A 1.625 inch
A1 2.374 inch
B 2.562 inch
s 1.002 inch
d1 2.966
Dynamic load Cr 48000 N
Static load Cor 33000 N
Rex max speed 2800 rpm
Weight 4.4 kg
Insert <a href="advanced_search_result.php?keywords=1060-2-1/4G+insonly">1060-2-1/4G Click Here</a>
Casting group 7
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
