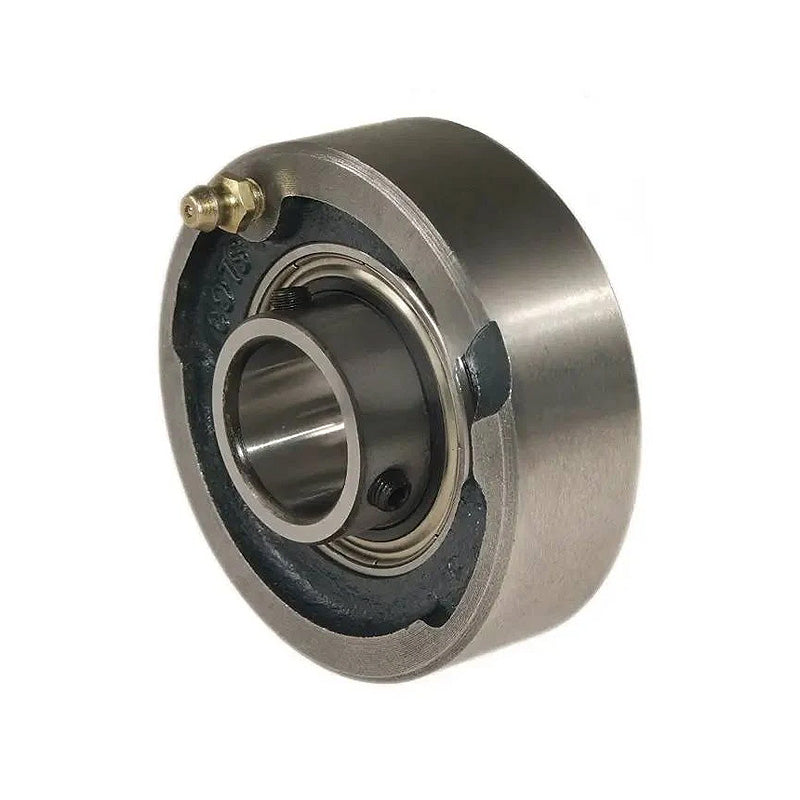

• RHP MSC2-11/16 Cast Iron Cartridge Unit with 2-11/16 inch Bore Insert 168.3mm Outside Diameter
1 1

SKU: MSC2.11/16-RHP

RHP MSC2-11/16 Cast Iron Cartridge Unit with 2-11/16 inch Bore Insert 168.3mm Outside Diameter

RHP MSC2-11/16 Cast Iron Cartridge Unit with 2-11/16 inch Bore Insert 168.3mm Outside Diameter
$331.27 ex VAT
$331.27 ex VAT
Sale Sold out

In stock

Price Break
10+ $221.90
20+ $209.43
30+ $206.94
40+ $204.44
50+ $201.95
75+ $199.46
100+ $186.99
200+ $184.50
250+ $182.00
500+ $179.51
1000+ $174.52

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
RHP - High Quality
Inside Diameter:
68.26mm = 2.687 (2-11/16) inch
Outside Diameter:
168.3mm
Style:
MSC
Technical
Bore 2-11/16 inch
L 6.626 inch
A 2 inch
A1 2.748 inch
B 3.062 inch
s 1.314 inch
d1 3.622
Dynamic load Cr 66000 N
Static load Cor 49500 N
Rex max speed 2300 rpm
Weight 6.2 kg
Insert <a href="advanced_search_result.php?keywords=1075-2-11/16G+insonly">1075-2-11/16G Click Here</a>
Casting group 9
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
