SKU: MSC2.15/16-RHP
RHP MSC2-15/16 Cast Iron Cartridge Unit with 2-15/16 inch Bore Insert 177.83mm Outside Diameter - Allow 2-3 Days
RHP MSC2-15/16 Cast Iron Cartridge Unit with 2-15/16 inch Bore Insert 177.83mm Outside Diameter - Allow 2-3 Days
Regular price
$589.11
ex VAT
Regular price
Sale price
$589.11
ex VAT
In stock
Price Break
10+
$438.88
20+
$421.14
30+
$412.28
40+
$398.98
50+
$390.11
75+
$367.95
100+
$310.32
200+
$0.00
250+
$0.00
500+
$0.00
1000+
$0.00
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
RHP MSC Series Heavy Duty Cast Iron Cartridge Bearing Units: Cast iron cartridge bearing unit supplied with a sealed heavy duty full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 74.61mm = 2.937 (2-15/16) inch
- Outside Diameter:
- 177.83mm
- Style:
- MSC
Technical
Technical

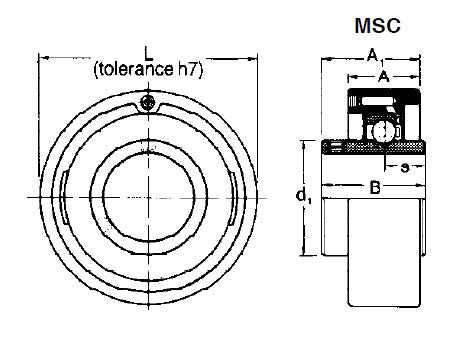

| Bore | 2-15/16 inch |
|---|---|
| L | 7.001 inch |
| A | 2.187 inch |
| A1 | 3.031 inch |
| B | 3.25 inch |
| s | 1.314 inch |
| d1 | 3.878 |
| Dynamic load Cr | 71500 N |
| Static load Cor | 54500 N |
| Rex max speed | 2150 rpm |
| Weight | 7.9 kg |
| Insert | <a href="advanced_search_result.php?keywords=1080-2-15/16G+insonly">1080-2-15/16G Click Here</a> |
| Casting group | 10 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
