SKU: MSC2.3/16-RHP

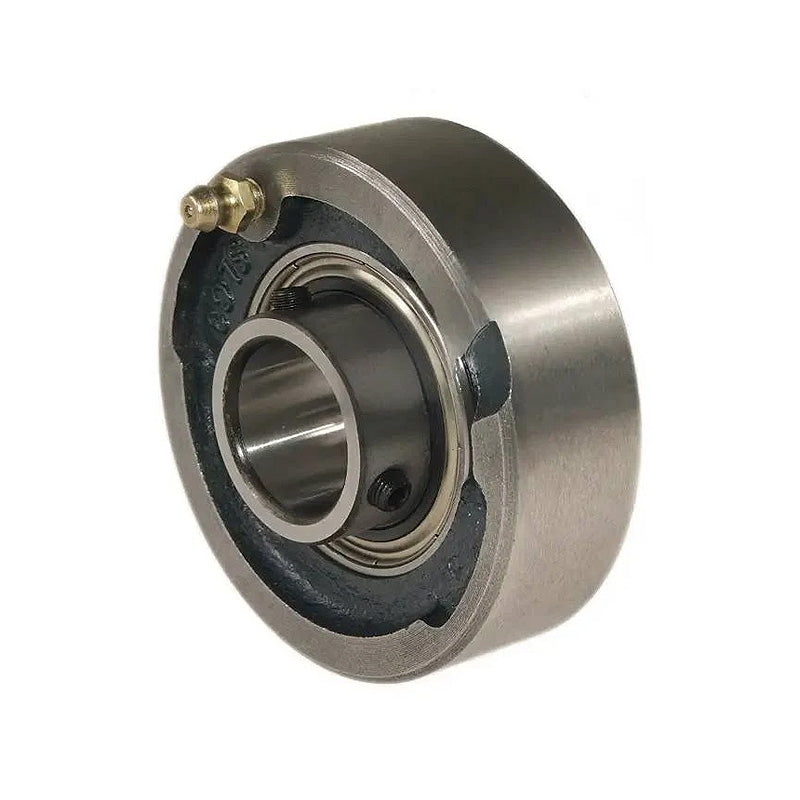

RHP MSC2-3/16 Cast Iron Cartridge Unit with 2-3/16 inch Bore Insert 149.25mm Outside Diameter
RHP MSC2-3/16 Cast Iron Cartridge Unit with 2-3/16 inch Bore Insert 149.25mm Outside Diameter
Regular price
$243.56
ex VAT
Regular price
Sale price
$243.56
ex VAT
In stock
Price Break
10+
$163.14
20+
$153.98
30+
$152.14
40+
$150.31
50+
$148.48
75+
$146.64
100+
$137.48
200+
$135.65
250+
$133.81
500+
$131.98
1000+
$128.31
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
RHP MSC Series Heavy Duty Cast Iron Cartridge Bearing Units: Cast iron cartridge bearing unit supplied with a sealed heavy duty full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 55.56mm = 2.187 (2-3/16) inch
- Outside Diameter:
- 149.25mm
- Style:
- MSC
Technical
Technical
| Bore | 2-3/16 inch |
|---|---|
| L | 5.876 inch |
| A | 1.625 inch |
| A1 | 2.374 inch |
| B | 2.562 inch |
| s | 1.002 inch |
| d1 | 2.966 |
| Dynamic load Cr | 48000 N |
| Static load Cor | 33000 N |
| Rex max speed | 2800 rpm |
| Weight | 4.4 kg |
| Insert | <a href="advanced_search_result.php?keywords=1060-2-3/16G+insonly">1060-2-3/16G Click Here</a> |
| Casting group | 7 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
