SKU: MSC2.7/16-RHP

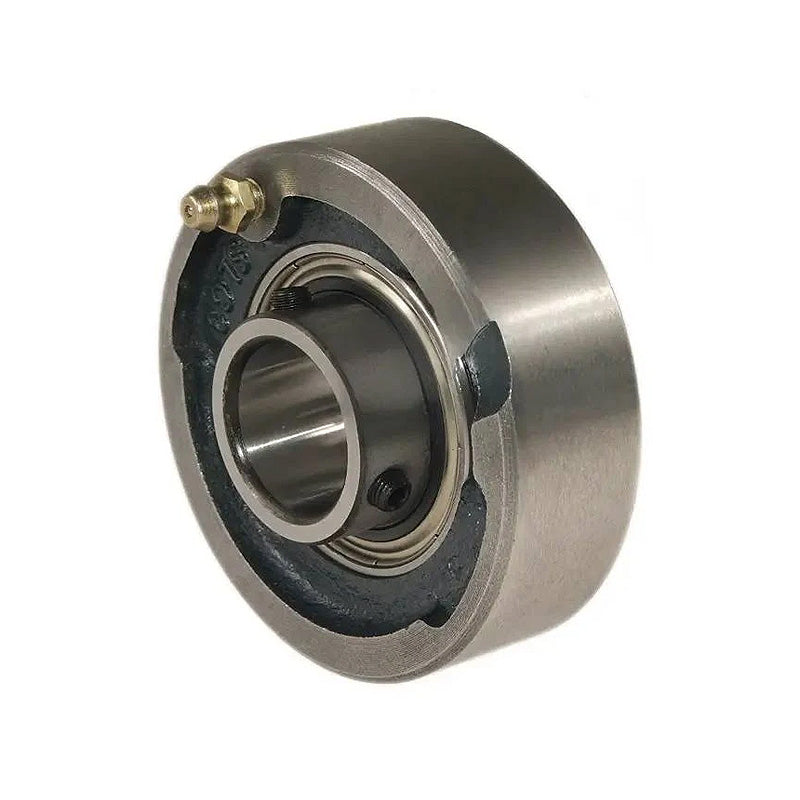

RHP MSC2-7/16 Cast Iron Cartridge Unit with 2-7/16 inch Bore Insert 158.78mm Outside Diameter
RHP MSC2-7/16 Cast Iron Cartridge Unit with 2-7/16 inch Bore Insert 158.78mm Outside Diameter
Regular price
$288.62
ex VAT
Regular price
Sale price
$288.62
ex VAT
In stock
Price Break
10+
$193.33
20+
$182.47
30+
$180.29
40+
$178.12
50+
$175.95
75+
$173.78
100+
$162.92
200+
$160.74
250+
$158.57
500+
$156.40
1000+
$152.06
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
RHP MSC Series Heavy Duty Cast Iron Cartridge Bearing Units: Cast iron cartridge bearing unit supplied with a sealed heavy duty full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 61.91mm = 2.437 (2-7/16) inch
- Outside Diameter:
- 158.78mm
- Style:
- MSC
Technical
Technical
| Bore | 2-7/16 inch |
|---|---|
| L | 6.251 inch |
| A | 2 inch |
| A1 | 2.748 inch |
| B | 2.938 inch |
| s | 1.19 inch |
| d1 | 3.425 |
| Dynamic load Cr | 61000 N |
| Static load Cor | 45000 N |
| Rex max speed | 2450 rpm |
| Weight | 5.3 kg |
| Insert | <a href="advanced_search_result.php?keywords=1070-2-7/16G+insonly">1070-2-7/16G Click Here</a> |
| Casting group | 8 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
