SKU: MSC3.3/16-RHP

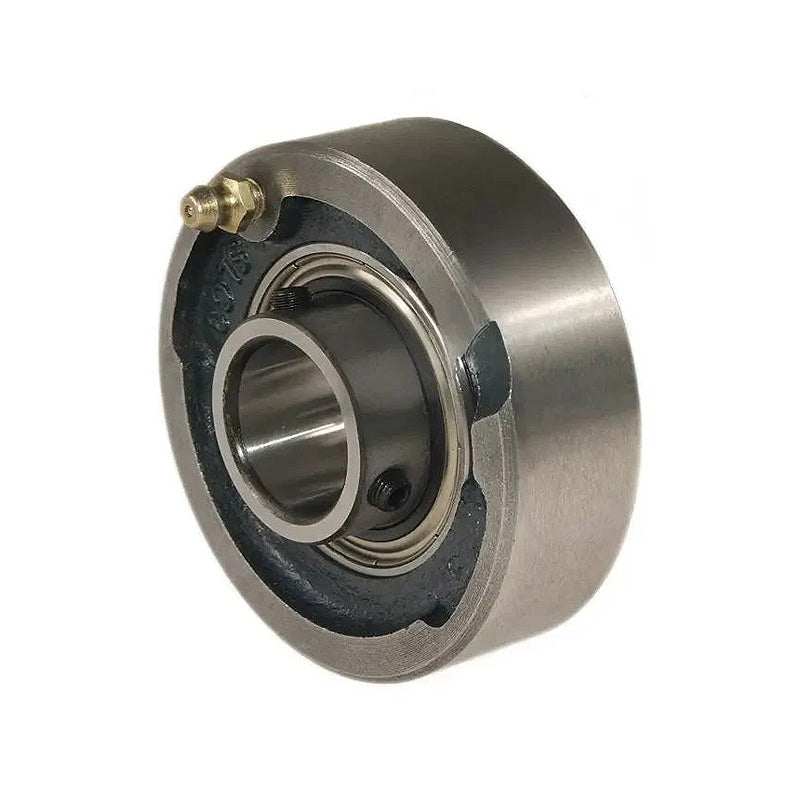

RHP MSC3-3/16 Cast Iron Cartridge Unit with 3-3/16 inch Bore Insert 188.94mm Outside Diameter
RHP MSC3-3/16 Cast Iron Cartridge Unit with 3-3/16 inch Bore Insert 188.94mm Outside Diameter
Out of stock
Share this product
Description
Description
|
RHP MSC Series Heavy Duty Cast Iron Cartridge Bearing Units: Cast iron cartridge bearing unit supplied with a sealed heavy duty full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 80.96mm = 3.187 (3-3/16) inch
- Outside Diameter:
- 188.94mm
- Style:
- MSC
Technical
Technical
| Bore | 3-3/16 inch |
|---|---|
| L | 7.4385 inch |
| A | 2.5 inch |
| A1 | 3.279 inch |
| B | 3.375 inch |
| s | 1.346 inch |
| d1 | 4.174 |
| Dynamic load Cr | 83000 N |
| Static load Cor | 64000 N |
| Rex max speed | 2000 rpm |
| Weight | 9.3 kg |
| Insert | <a href="advanced_search_result.php?keywords=1085-3-3/16G+insonly">1085-3-3/16G Click Here</a> |
| Casting group | 11 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
