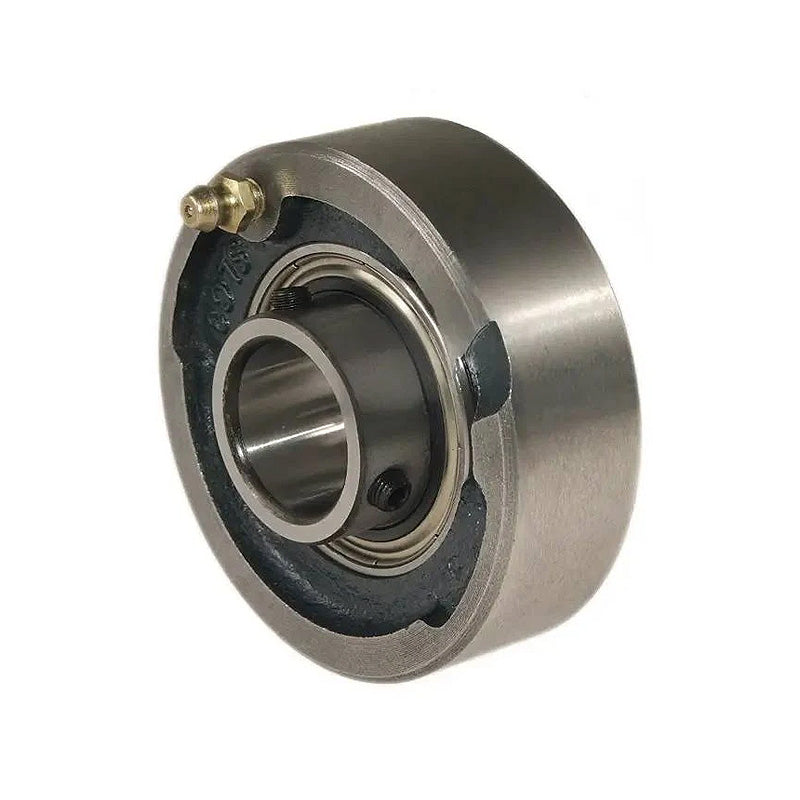

• RHP MSC3 Cast Iron Cartridge Unit with 3 inch Bore Insert 177.83mm Outside Diameter
1 1

SKU: MSC3-RHP

RHP MSC3 Cast Iron Cartridge Unit with 3 inch Bore Insert 177.83mm Outside Diameter

RHP MSC3 Cast Iron Cartridge Unit with 3 inch Bore Insert 177.83mm Outside Diameter
$402.30 ex VAT
$402.30 ex VAT
Sale Sold out

In stock

Price Break
10+ $269.47
20+ $254.34
30+ $251.31
40+ $248.28
50+ $245.25
75+ $242.22
100+ $227.09
200+ $224.06
250+ $221.03
500+ $218.00
1000+ $211.95

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
RHP - High Quality
Inside Diameter:
76.2mm = 3 inch
Outside Diameter:
177.83mm
Style:
MSC
Technical
Bore 3 inch
L 7.001 inch
A 2.187 inch
A1 3.031 inch
B 3.25 inch
s 1.314 inch
d1 3.878
Dynamic load Cr 71500 N
Static load Cor 54500 N
Rex max speed 2150 rpm
Weight 7.9 kg
Insert <a href="advanced_search_result.php?keywords=1080-3G+insonly">1080-3G Click Here</a>
Casting group 10
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
