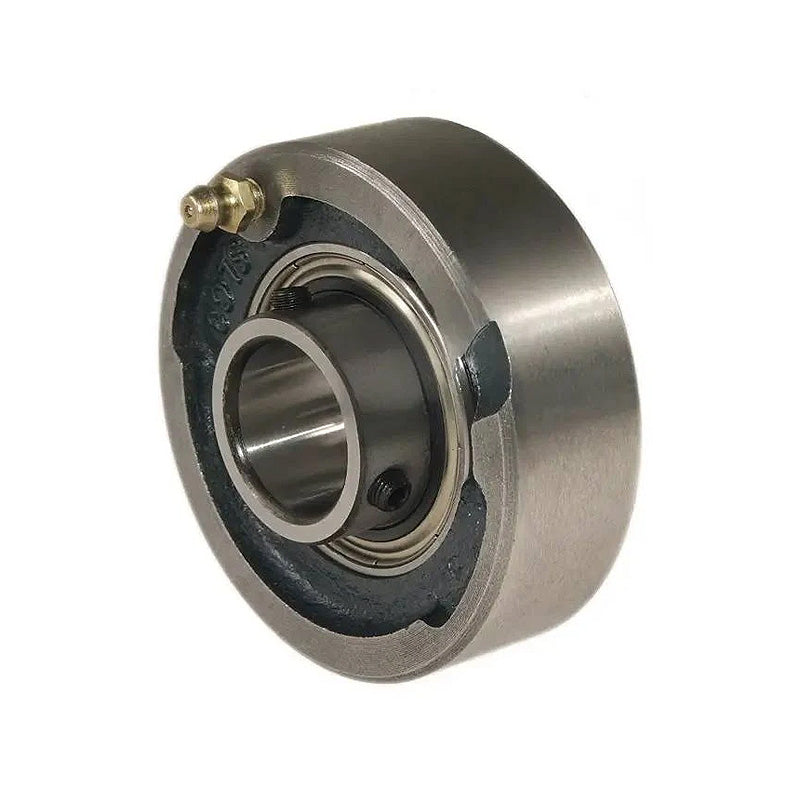

• RHP MSC4 Cast Iron Cartridge Unit with 4 inch Bore Insert 241.33mm Outside Diameter
1 1

SKU: MSC4-RHP

RHP MSC4 Cast Iron Cartridge Unit with 4 inch Bore Insert 241.33mm Outside Diameter

RHP MSC4 Cast Iron Cartridge Unit with 4 inch Bore Insert 241.33mm Outside Diameter
$1,218.51 ex VAT
$1,218.51 ex VAT
Sale Sold out

In stock

Price Break
10+ $816.19
20+ $770.34
30+ $761.17
40+ $752.00
50+ $742.83
75+ $733.66
100+ $687.80
200+ $678.63
250+ $669.46
500+ $660.29
1000+ $641.95

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
RHP - High Quality
Inside Diameter:
101.6mm = 4 inch
Outside Diameter:
241.33mm
Style:
MSC
Technical
Bore 4 inch
L 9.501 inch
A 3 inch
A1 4.188 inch
B 4.625 inch
s 1.94 inch
d1 5.135
Dynamic load Cr 157000 N
Static load Cor 122000 N
Rex max speed 1600 rpm
Weight 20.4 kg
Insert <a href="advanced_search_result.php?keywords=3095-4G+insonly">3095-4G Click Here</a>
Casting group 13
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
