• RHP MSFT1-1/2 Heavy Duty Two Bolt Oval Cast Iron Flange Housing 1-1/2 inch Bore Insert
1 1

SKU: MSFT1.1/2-RHP

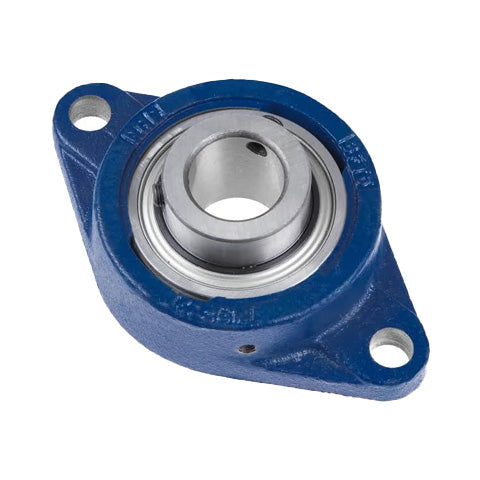

RHP MSFT1-1/2 Heavy Duty Two Bolt Oval Cast Iron Flange Housing 1-1/2 inch Bore Insert

RHP MSFT1-1/2 Heavy Duty Two Bolt Oval Cast Iron Flange Housing 1-1/2 inch Bore Insert
$136.06 ex VAT
$136.06 ex VAT
Sale Sold out

In stock

Price Break
10+ $91.14
20+ $86.02
30+ $84.99
40+ $83.97
50+ $82.94
75+ $81.92
100+ $76.80
200+ $75.78
250+ $74.75
500+ $73.73
1000+ $71.68

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
RHP - High Quality
Inside Diameter:
38.1mm = 1.5 (1-1/2) inch
Style:
MSFT
Bolt Hole Centres:
148.49mm = 5.846 inch
Technical
Bore 1-1/2 inch
L 4.374 inch
H 7.063 inch
J 5.846 inch
G 0.625 inch
A 1.39 inch
A1 2.133 inch
A4 0.563 inch
B 1.938 inch
s 0.752
d1 2.256 inch
Dynamic load 32500 N
Static load 20500 N
Rec max speed 3700 rpm
Weight 2.2 kg
Insert <a href="advanced_search_result.php?keywords=1045-1-1/2G+insonly">1045-1-1/2G Click Here</a>
Casting group 4
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
