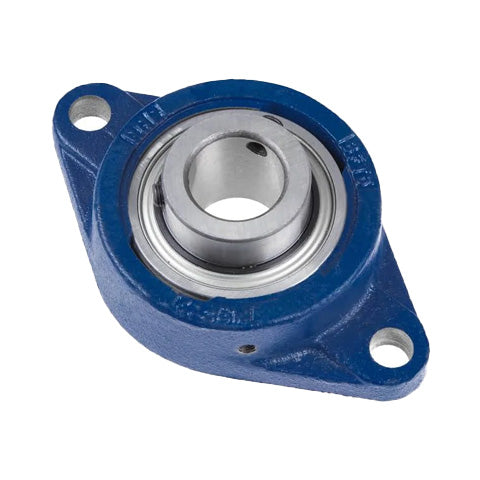

• RHP MSFT1-11/16 Heavy Duty Two Bolt Oval Cast Iron Flange Housing 1-11/16 inch Bore Insert
1 1

SKU: MSFT1.11/16-RHP

RHP MSFT1-11/16 Heavy Duty Two Bolt Oval Cast Iron Flange Housing 1-11/16 inch Bore Insert

RHP MSFT1-11/16 Heavy Duty Two Bolt Oval Cast Iron Flange Housing 1-11/16 inch Bore Insert
$158.53 ex VAT
$158.53 ex VAT
Sale Sold out

In stock

Price Break
10+ $106.18
20+ $100.22
30+ $99.02
40+ $97.83
50+ $96.64
75+ $95.44
100+ $89.48
200+ $88.29
250+ $87.09
500+ $85.90
1000+ $83.51

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
RHP - High Quality
Inside Diameter:
42.86mm = 1.687 (1-11/16) inch
Style:
MSFT
Bolt Hole Centres:
156.997mm = 6.181 inch
Technical
Bore 1-11/16 inch
L 4.563 inch
H 7.437 inch
J 6.181 inch
G 0.625 inch
A 1.563 inch
A1 2.383 inch
A4 0.563 inch
B 2.031 inch
s 0.752
d1 2.449 inch
Dynamic load 35000 N
Static load 23200 N
Rec max speed 3400 rpm
Weight 2.5 kg
Insert <a href="advanced_search_result.php?keywords=1050-1-11/16G+insonly">1050-1-11/16G Click Here</a>
Casting group 5
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
