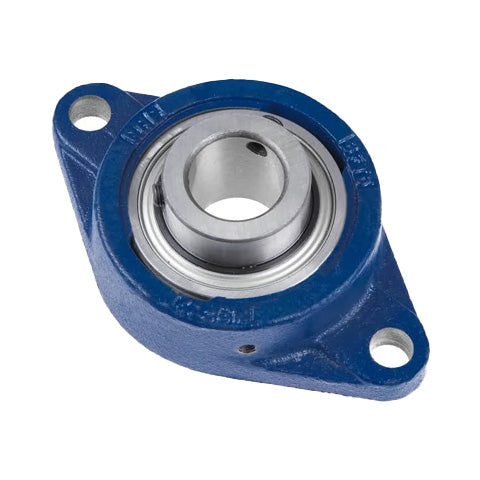

• RHP MSFT1 Heavy Duty Two Bolt Oval Cast Iron Flange Housing 1 inch Bore Insert
1 1

SKU: MSFT1-RHP

RHP MSFT1 Heavy Duty Two Bolt Oval Cast Iron Flange Housing 1 inch Bore Insert

RHP MSFT1 Heavy Duty Two Bolt Oval Cast Iron Flange Housing 1 inch Bore Insert
$97.89 ex VAT
$97.89 ex VAT
Sale Sold out

In stock

Price Break
10+ $65.57
20+ $61.89
30+ $61.15
40+ $60.41
50+ $59.67
75+ $58.94
100+ $55.25
200+ $54.52
250+ $53.78
500+ $53.04
1000+ $51.57

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
RHP - High Quality
Inside Diameter:
25.4mm = 1 inch
Style:
MSFT
Bolt Hole Centres:
116.51mm = 4.587 inch
Technical
Bore 1 inch
L 3.252 inch
H 5.563 inch
J 4.587 inch
G 0.4375 inch
A 1.173 inch
A1 1.662 inch
A4 0.5 inch
B 1.5 inch
s 0.627
d1 1.575 inch
Dynamic load 19500 N
Static load 11300 N
Rec max speed 5300 rpm
Weight 1.1 kg
Insert <a href="advanced_search_result.php?keywords=1030-1G+insonly">1030-1G Click Here</a>
Casting group 1
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
