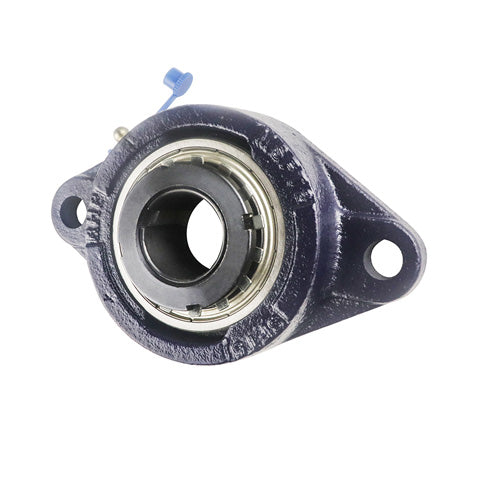

• RHP MSFT1030-1K Two Bolt Oval Cast Iron Flange Housing 1 inch Bore Insert
1 1

SKU: MSFT1030-1K-RHP

RHP MSFT1030-1K Two Bolt Oval Cast Iron Flange Housing 1 inch Bore Insert

RHP MSFT1030-1K Two Bolt Oval Cast Iron Flange Housing 1 inch Bore Insert
$119.49 ex VAT
$119.49 ex VAT
Sale Sold out

In stock

Price Break
10+ $80.04
20+ $75.54
30+ $74.64
40+ $73.75
50+ $72.85
75+ $71.95
100+ $67.45
200+ $66.55
250+ $65.65
500+ $64.75
1000+ $62.95

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
RHP - High Quality
Inside Diameter:
25.4mm = 1 inch
Style:
MSFT
Bolt Hole Centres:
116.51mm = 4.587 inch
Technical
Bore 1 inch
L 3.252 inch
H 5.563 inch
J 4.587 inch
G 0.4375 inch
A 1.173 inch
A4 0.5 inch
A5 1.496 inch
B5 1.22 inch
s - inch
d4 1.772 inch
Dynamic load 19500 N
Static load 11300 N
Rec max speed 5300 rpm
Weight 1.1 kg
Insert <a href="advanced_search_result.php?keywords=1030K+insonly">1030K Click Here</a>
Casting group 1
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
