SKU: MSFT1045-40K-RHP

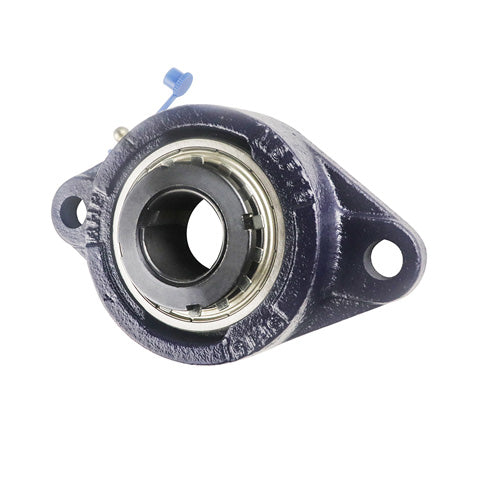

RHP MSFT1045-40K Two Bolt Oval Cast Iron Flange Housing 40mm Bore Insert

Name: RHP MSFT1045-40K Two Bolt Oval Cast Iron Flange Housing 40mm Bore Insert
Brand: RHP
SKU: MSFT1045-40K-RHP
Price: 176.38 USD
Availability: InStock

$176.38 ex VAT

Sale Sold out

In stock

Price Break

10+ $118.15

20+ $111.51

30+ $110.19

40+ $108.86

50+ $107.53

75+ $106.20

100+ $99.57

200+ $98.24

250+ $96.91

500+ $95.58

1000+ $92.93

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: RHP - High Quality
Inside Diameter:: 40mm
Style:: MSFT
Bolt Hole Centres:: 148.5mm

Technical

Bore	40mm
L	111.1mm
H	179.4mm
J	148.5mm
G	16mm
A	35.3mm
A4	14.3mm
A5	46.5mm
B5	39mm
s	-mm
d4	65mm
Dynamic load	32500 N
Static load	20500 N
Rec max speed	3700 rpm
Weight	2.2 kg
Insert	<a href="advanced_search_result.php?keywords=1045K+insonly">1045K Click Here</a>
Casting group	4
Grease nipple thread	1/4 UNF, 1/4 inch x 28 TPI
