SKU: MSFT1050-45K-RHP

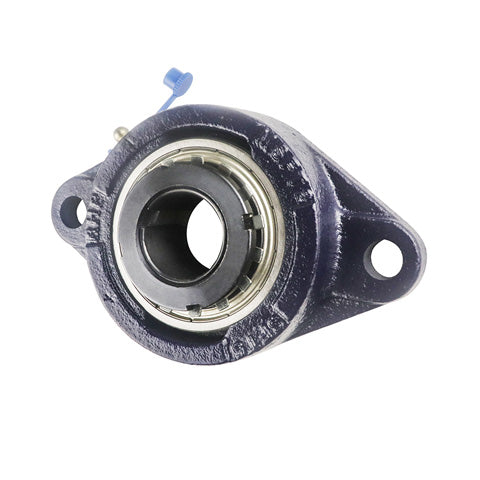

RHP MSFT1050-45K Two Bolt Oval Cast Iron Flange Housing 45mm Bore Insert

Name: RHP MSFT1050-45K Two Bolt Oval Cast Iron Flange Housing 45mm Bore Insert
Brand: RHP
SKU: MSFT1050-45K-RHP
Price: 211.70 USD
Availability: InStock

$211.70 ex VAT

Sale Sold out

In stock

Price Break

10+ $141.81

20+ $133.84

30+ $132.25

40+ $130.65

50+ $129.06

75+ $127.47

100+ $119.50

200+ $117.91

250+ $116.31

500+ $114.72

1000+ $111.53

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: RHP - High Quality
Inside Diameter:: 45mm
Style:: MSFT
Bolt Hole Centres:: 157mm

Technical

Bore	45mm
L	115.9mm
H	188.9mm
J	157mm
G	16mm
A	39.7mm
A4	14.3mm
A5	52mm
B5	42mm
s	-mm
d4	70mm
Dynamic load	27000 N
Static load	23200 N
Rec max speed	3400 rpm
Weight	2.5 kg
Insert	<a href="advanced_search_result.php?keywords=1050K+insonly">1050K Click Here</a>
Casting group	5
Grease nipple thread	1/4 UNF, 1/4 inch x 28 TPI
