SKU: MSFT1055-50K-RHP

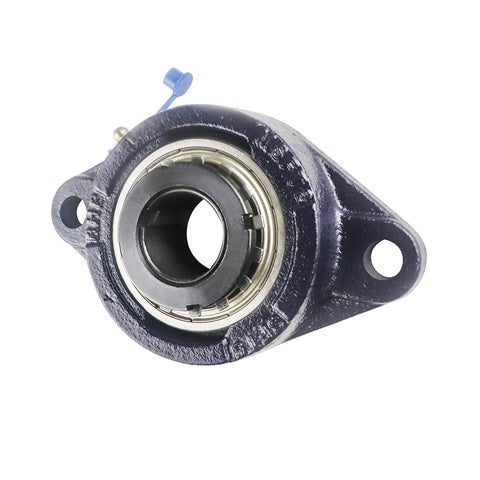

RHP MSFT1055-50K Two Bolt Oval Cast Iron Flange Housing 50mm Bore Insert

Name: RHP MSFT1055-50K Two Bolt Oval Cast Iron Flange Housing 50mm Bore Insert
Brand: RHP
SKU: MSFT1055-50K-RHP
Price: 241.32 USD
Availability: InStock

$241.32 ex VAT

Sale Sold out

In stock

Price Break

10+ $161.64

20+ $152.56

30+ $150.74

40+ $148.93

50+ $147.11

75+ $145.29

100+ $136.21

200+ $134.40

250+ $132.58

500+ $130.76

1000+ $127.13

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: RHP - High Quality
Inside Diameter:: 50mm
Style:: MSFT
Bolt Hole Centres:: 184mm

Technical

Bore	50mm
L	127mm
H	215.9mm
J	184mm
G	16mm
A	43.7mm
A4	17.5mm
A5	55.5mm
B5	45mm
s	-mm
d4	75mm
Dynamic load	43500 N
Static load	29200 N
Rec max speed	3100 rpm
Weight	3.5 kg
Insert	<a href="advanced_search_result.php?keywords=1055K+insonly">1055K Click Here</a>
Casting group	6
Grease nipple thread	1/4 UNF, 1/4 inch x 28 TPI
