SKU: MSFT2.3/16-RHP

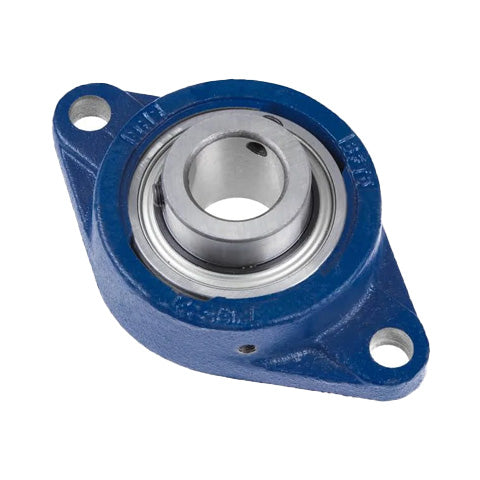

RHP MSFT2-3/16 Heavy Duty Two Bolt Oval Cast Iron Flange Housing 2-3/16 inch Bore Insert
RHP MSFT2-3/16 Heavy Duty Two Bolt Oval Cast Iron Flange Housing 2-3/16 inch Bore Insert
Regular price
$217.61
ex VAT
Regular price
Sale price
$217.61
ex VAT
In stock
Price Break
10+
$145.77
20+
$137.58
30+
$135.94
40+
$134.30
50+
$132.66
75+
$131.03
100+
$122.84
200+
$121.20
250+
$119.56
500+
$117.92
1000+
$114.65
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
RHP MSFT Series Heavy Duty 2 Bolt Oval Cast Iron Housings: Bearing units supplied with a full width sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has two grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 55.56mm = 2.187 (2-3/16) inch
- Style:
- MSFT
- Bolt Hole Centres:
- 202.01mm = 7.953 inch
Technical
Technical
| Bore | 2-3/16 inch |
|---|---|
| L | 5.437 inch |
| H | 9.252 inch |
| J | 7.953 inch |
| G | 0.625 inch |
| A | 1.874 inch |
| A1 | 2.901 inch |
| A4 | 0.689 inch |
| B | 2.562 inch |
| s | 1.002 |
| d1 | 2.966 inch |
| Dynamic load | 48000 N |
| Static load | 33000 N |
| Rec max speed | 2800 rpm |
| Weight | 4.3 kg |
| Insert | <a href="advanced_search_result.php?keywords=1060-2-3/16G+insonly">1060-2-3/16G Click Here</a> |
| Casting group | 7 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
