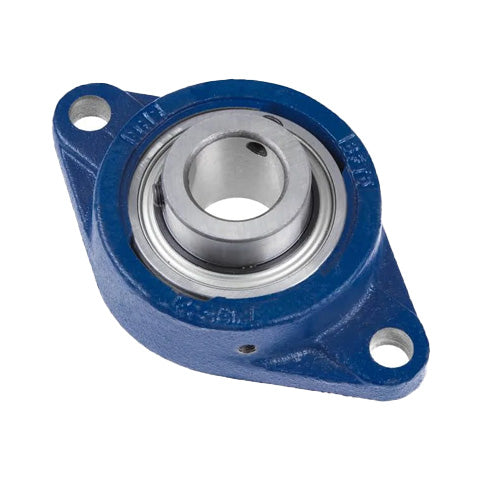

• RHP MSFT2 Heavy Duty Two Bolt Oval Cast Iron Flange Housing 2 inch Bore Insert
1 1

SKU: MSFT2-RHP

RHP MSFT2 Heavy Duty Two Bolt Oval Cast Iron Flange Housing 2 inch Bore Insert

RHP MSFT2 Heavy Duty Two Bolt Oval Cast Iron Flange Housing 2 inch Bore Insert
$176.15 ex VAT
$176.15 ex VAT
Sale Sold out

In stock

Price Break
10+ $117.99
20+ $111.36
30+ $110.03
40+ $108.71
50+ $107.38
75+ $106.06
100+ $99.43
200+ $98.10
250+ $96.78
500+ $95.45
1000+ $92.80

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
RHP - High Quality
Inside Diameter:
50.8mm = 2 inch
Style:
MSFT
Bolt Hole Centres:
183.998mm = 7.244 inch
Technical
Bore 2 inch
L 5 inch
H 8.5 inch
J 7.244 inch
G 0.625 inch
A 1.72 inch
A1 2.532 inch
A4 0.689 inch
B 2.187 inch
s 0.877
d1 2.709 inch
Dynamic load 43500 N
Static load 29200 N
Rec max speed 3100 rpm
Weight 3.5 kg
Insert <a href="advanced_search_result.php?keywords=1055-2G+insonly">1055-2G Click Here</a>
Casting group 6
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
