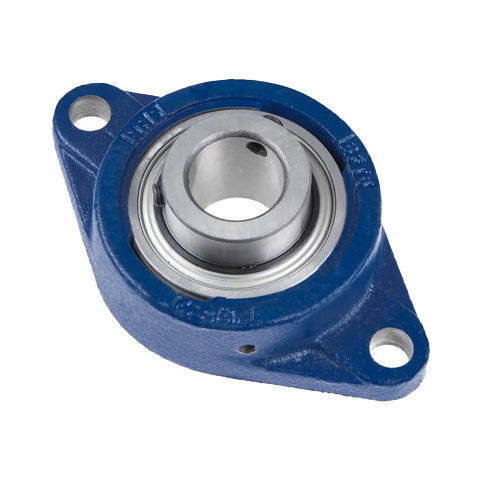

• RHP MSFT25 Heavy Duty Two Bolt Oval Cast Iron Flange Housing 25mm Bore Insert
1 1

SKU: MSFT25-RHP

RHP MSFT25 Heavy Duty Two Bolt Oval Cast Iron Flange Housing 25mm Bore Insert

RHP MSFT25 Heavy Duty Two Bolt Oval Cast Iron Flange Housing 25mm Bore Insert
$92.28 ex VAT
$92.28 ex VAT
Sale Sold out

In stock

Price Break
10+ $61.81
20+ $58.34
30+ $57.64
40+ $56.95
50+ $56.25
75+ $55.56
100+ $52.09
200+ $51.39
250+ $50.70
500+ $50.00
1000+ $48.61

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
RHP - High Quality
Inside Diameter:
25mm
Style:
MSFT
Bolt Hole Centres:
116.5mm
Technical
Bore 25mm
L 82.6mm
H 141.3mm
J 116.5mm
G 10mm
A 29.8mm
A1 42.21mm
A4 12.7mm
B 38.1mm
s 15.93
d1 40mm
Dynamic load 19500 N
Static load 11300 N
Rec max speed 5300 rpm
Weight 1.1 kg
Insert <a href="advanced_search_result.php?keywords=1030-25G+insonly">1030-25G Click Here</a>
Casting group 1
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
