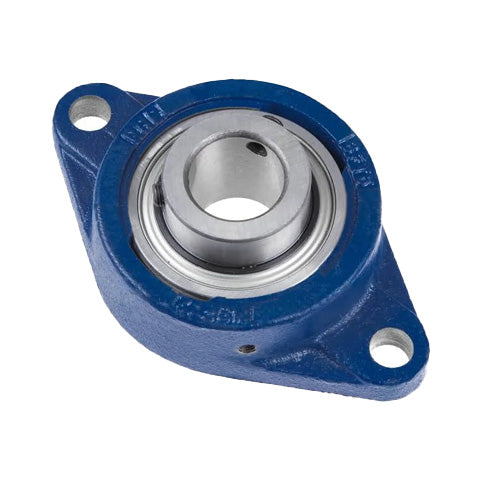

• RHP MSFT30 Heavy Duty Two Bolt Oval Cast Iron Flange Housing 30mm Bore Insert
1 1

SKU: MSFT30-RHP

RHP MSFT30 Heavy Duty Two Bolt Oval Cast Iron Flange Housing 30mm Bore Insert

RHP MSFT30 Heavy Duty Two Bolt Oval Cast Iron Flange Housing 30mm Bore Insert
$114.89 ex VAT
$114.89 ex VAT
Sale Sold out

In stock

Price Break
10+ $76.95
20+ $72.63
30+ $71.77
40+ $70.90
50+ $70.04
75+ $69.17
100+ $64.85
200+ $63.98
250+ $63.12
500+ $62.26
1000+ $60.53

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
RHP - High Quality
Inside Diameter:
30mm
Style:
MSFT
Bolt Hole Centres:
130mm

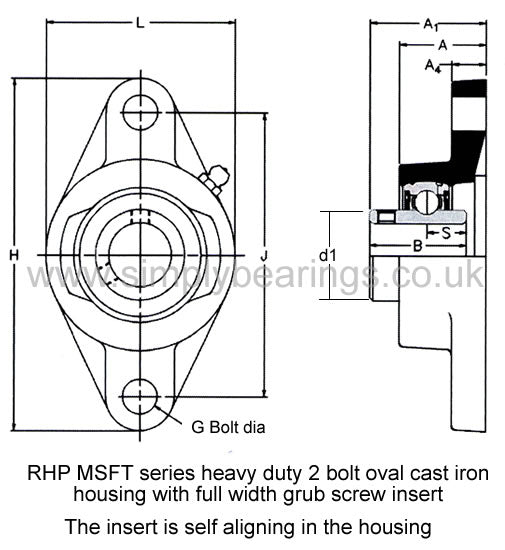

Technical
Bore 30mm
L 95.5mm
H 155.5mm
J 130mm
G 12mm
A 31.4mm
A1 46.41mm
A4 12.7mm
B 42.88mm
s 17.53
d1 46.69mm
Dynamic load 25700 N
Static load 15300 N
Rec max speed 4500 rpm
Weight 1.4 kg
Insert <a href="advanced_search_result.php?keywords=1035-30G+insonly">1035-30G Click Here</a>
Casting group 2
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
