SKU: MSFT45-RHP

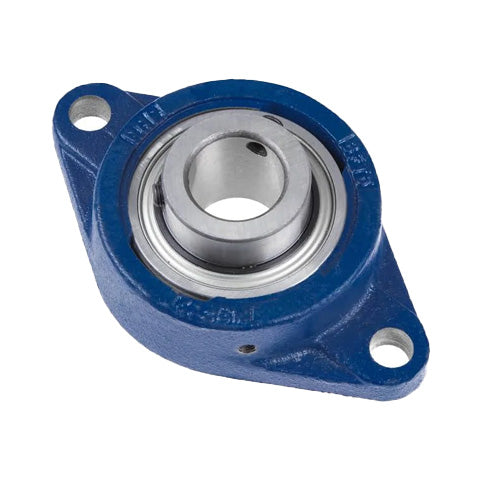

RHP MSFT45 Heavy Duty Two Bolt Oval Cast Iron Flange Housing 45mm Bore Insert

Name: RHP MSFT45 Heavy Duty Two Bolt Oval Cast Iron Flange Housing 45mm Bore Insert
Brand: RHP
SKU: MSFT45-RHP
Price: 149.44 USD
Availability: InStock

$149.44 ex VAT

Sale Sold out

In stock

Price Break

10+ $100.10

20+ $94.48

30+ $93.35

40+ $92.23

50+ $91.10

75+ $89.98

100+ $84.35

200+ $83.23

250+ $82.11

500+ $80.98

1000+ $78.73

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: RHP - High Quality
Inside Diameter:: 45mm
Style:: MSFT
Bolt Hole Centres:: 157mm

Technical

Bore	45mm
L	115.9mm
H	188.9mm
J	157mm
G	16mm
A	39.7mm
A1	60.53mm
A4	14.3mm
B	51.59mm
s	19.1
d1	62.2mm
Dynamic load	35000 N
Static load	23200 N
Rec max speed	3400 rpm
Weight	2.5 kg
Insert	<a href="advanced_search_result.php?keywords=1050-45G+insonly">1050-45G Click Here</a>
Casting group	5
Grease nipple thread	1/4 UNF, 1/4 inch x 28 TPI
