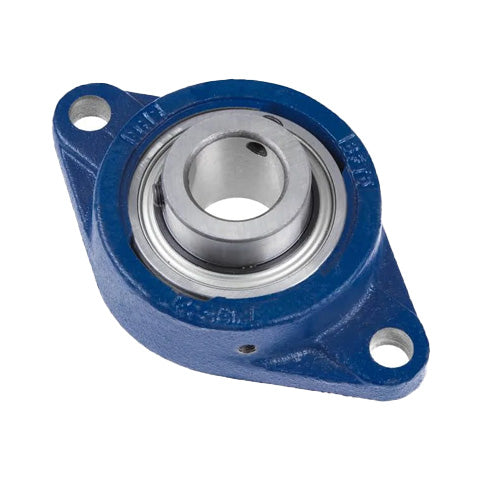

• RHP MSFT50 Heavy Duty Two Bolt Oval Cast Iron Flange Housing 50mm Bore Insert
1 1

SKU: MSFT50-RHP

RHP MSFT50 Heavy Duty Two Bolt Oval Cast Iron Flange Housing 50mm Bore Insert

RHP MSFT50 Heavy Duty Two Bolt Oval Cast Iron Flange Housing 50mm Bore Insert
$166.09 ex VAT
$166.09 ex VAT
Sale Sold out

In stock

Price Break
10+ $111.25
20+ $105.00
30+ $103.75
40+ $102.50
50+ $101.25
75+ $100.00
100+ $93.75
200+ $92.50
250+ $91.25
500+ $90.00
1000+ $87.50

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
RHP - High Quality
Inside Diameter:
50mm
Style:
MSFT
Bolt Hole Centres:
184mm
Technical
Bore 50mm
L 127mm
H 215.9mm
J 184mm
G 16mm
A 43.7mm
A1 64.31mm
A4 17.5mm
B 55.55mm
s 22.28
d1 68.81mm
Dynamic load 43500 N
Static load 29200 N
Rec max speed 3100 rpm
Weight 3.5 kg
Insert <a href="advanced_search_result.php?keywords=1055-50G+insonly">1055-50G Click Here</a>
Casting group 6
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
