• RHP MSFT55 Heavy Duty Two Bolt Oval Cast Iron Flange Housing 55mm Bore Insert
1 1

SKU: MSFT55-RHP

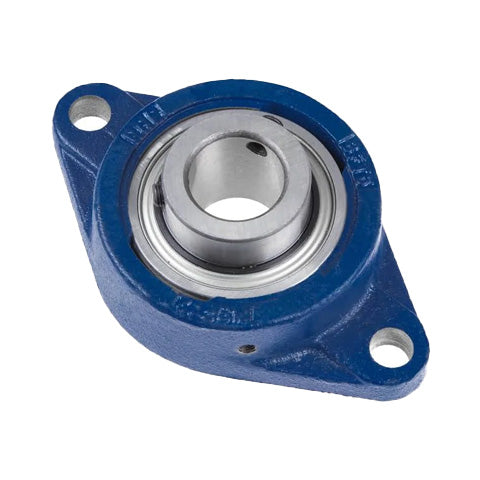

RHP MSFT55 Heavy Duty Two Bolt Oval Cast Iron Flange Housing 55mm Bore Insert

RHP MSFT55 Heavy Duty Two Bolt Oval Cast Iron Flange Housing 55mm Bore Insert
$205.23 ex VAT
$205.23 ex VAT
Sale Sold out

In stock

Price Break
10+ $137.47
20+ $129.75
30+ $128.20
40+ $126.66
50+ $125.11
75+ $123.57
100+ $115.85
200+ $114.30
250+ $112.76
500+ $111.21
1000+ $108.12

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
RHP - High Quality
Inside Diameter:
55mm
Style:
MSFT
Bolt Hole Centres:
202mm
Technical
Bore 55mm
L 138.1mm
H 235mm
J 202mm
G 16mm
A 47.6mm
A1 73.69mm
A4 17.5mm
B 65.07mm
s 25.45
d1 75.34mm
Dynamic load 48000 N
Static load 33000 N
Rec max speed 2800 rpm
Weight 4.3 kg
Insert <a href="advanced_search_result.php?keywords=1060-55G+insonly">1060-55G Click Here</a>
Casting group 7
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
