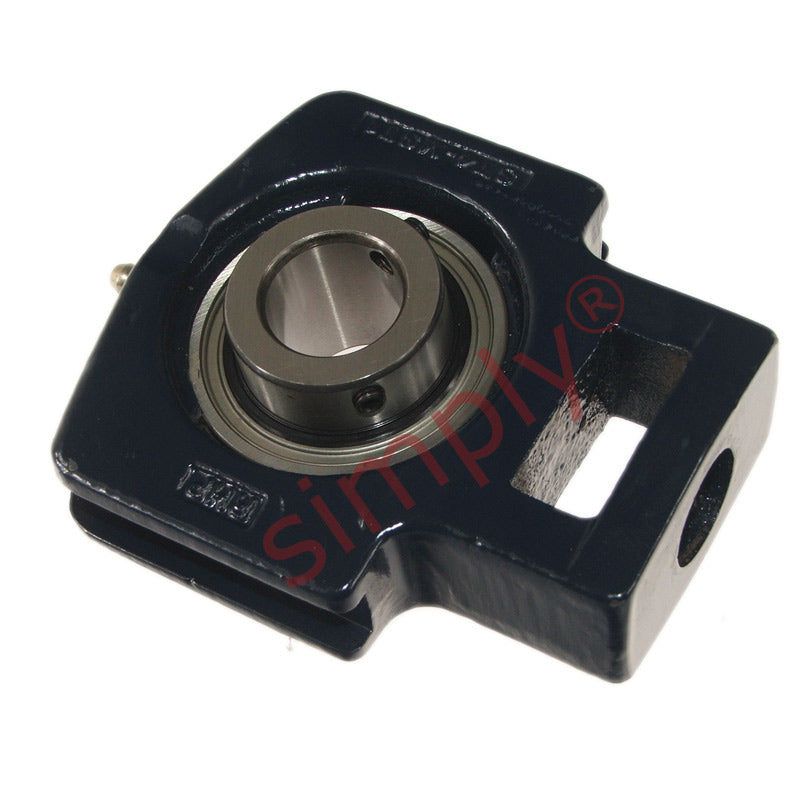

• RHP MST1040-35K Cast Iron Take Up Unit and 35mm Bore Insert
1 1

SKU: MST1040-35K-RHP

RHP MST1040-35K Cast Iron Take Up Unit and 35mm Bore Insert

RHP MST1040-35K Cast Iron Take Up Unit and 35mm Bore Insert
$162.99 ex VAT
$162.99 ex VAT
Sale Sold out

In stock

Price Break
10+ $109.18
20+ $103.04
30+ $101.82
40+ $100.59
50+ $99.36
75+ $98.14
100+ $92.00
200+ $90.78
250+ $89.55
500+ $88.32
1000+ $85.87

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
RHP - High Quality
Inside Diameter:
35mm
Style:
MST
Technical
Bore 35mm
L 143.5mm
L1 89.2mm
L2 15.5mm
L3 20.5mm
L4 81.5mm
L5 50.5mm
H 118mm
H1 82.5mm
H2 49.5mm
H3 101mm
N 29mm
A 49.5mm
A1 37mm
A2 17.5mm
B -mm
B5 36mm
s -mm
d1 -mm
d4 58mm
Dynamic load 32500 N
Static load 19900 N
Rec max speed 4000 rpm
Weight 2.7 kg
Insert <a href="advanced_search_result.php?keywords=1040K+insonly">1040K Click Here</a>
Casting group 3
Grease nipple thread 1/4 UNF, 1/4mm x 28 TPI
