SKU: MST1050-45K-RHP

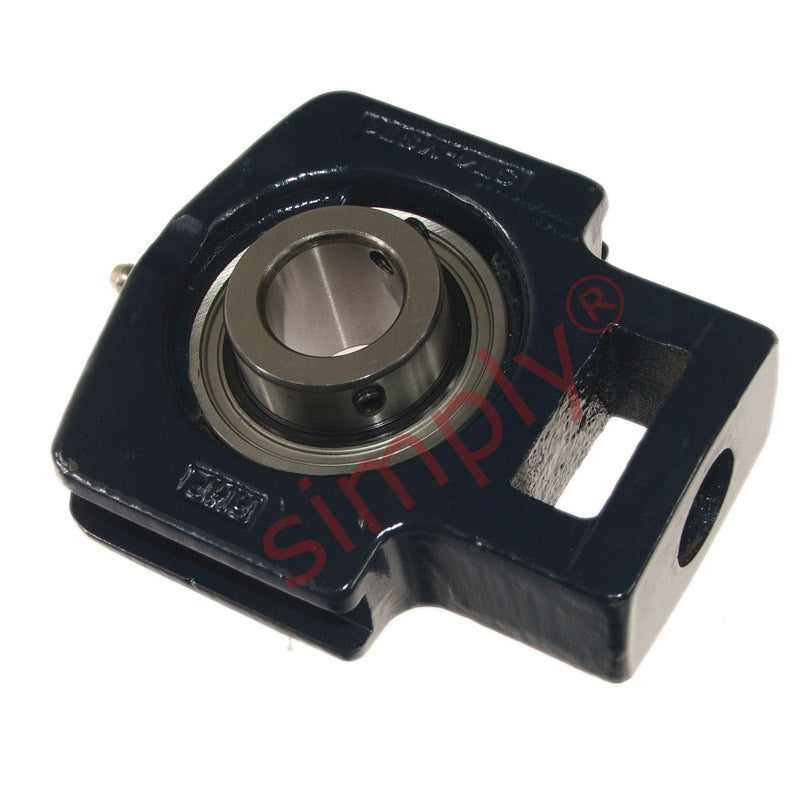

RHP MST1050-45K Cast Iron Take Up Unit and 45mm Bore Insert
Out of stock
Share this product
Description
|
RHP MST K Series Cast Iron Take Up Housing Units: Take up type cast iron bearing units supplied with a full width sealed heavy duty bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing has a taper bore to accommodate the taper sleeve which is tightened using a lock nut to secure to the shaft after installation, the locknut is subsequently secured with the tab washer. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 45mm
- Style:
- MST
Technical
| Bore | 45mm |
|---|---|
| L | 151mm |
| L1 | 90.5mm |
| L2 | 15.5mm |
| L3 | 20.5mm |
| L4 | 81.5mm |
| L5 | 50.5mm |
| H | 118mm |
| H1 | 82.5mm |
| H2 | 49.5mm |
| H3 | 101mm |
| N | 29mm |
| A | 49.5mm |
| A1 | 37mm |
| A2 | 17.5mm |
| B | -mm |
| B5 | 42mm |
| s | -mm |
| d1 | -mm |
| d4 | 70mm |
| Dynamic load | 35000 N |
| Static load | 23200 N |
| Rec max speed | 3400 rpm |
| Weight | 2.8 kg |
| Insert | <a href="advanced_search_result.php?keywords=1050K+insonly">1050K Click Here</a> |
| Casting group | 5 |
| Grease nipple thread | 1/4 UNF, 1/4mm x 28 TPI |
