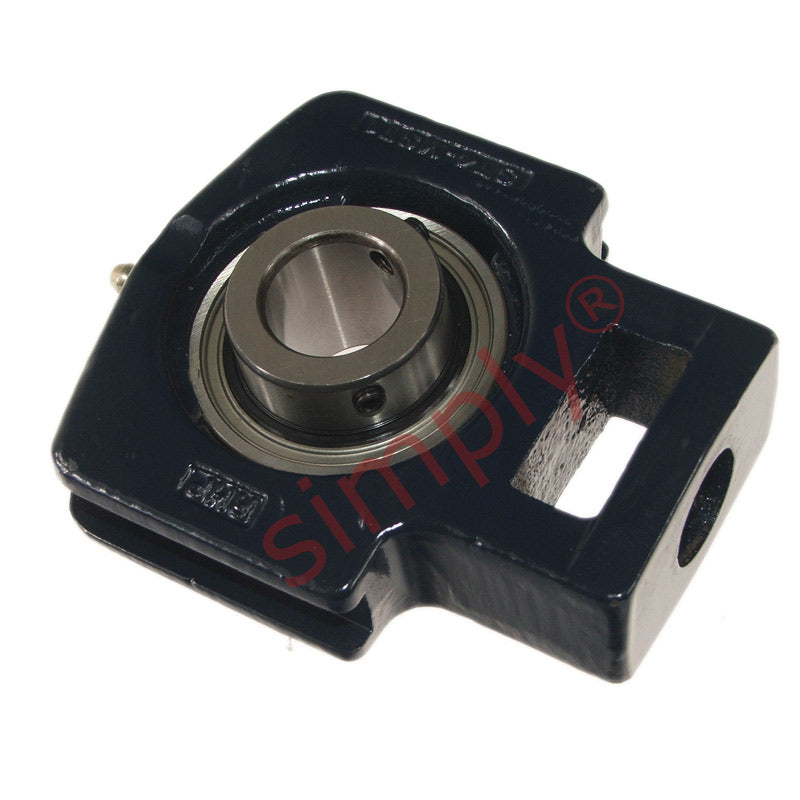

• RHP MST1055-50K Cast Iron Take Up Unit and 50mm Bore Insert
1 1

SKU: MST1055-50K-RHP

RHP MST1055-50K Cast Iron Take Up Unit and 50mm Bore Insert

RHP MST1055-50K Cast Iron Take Up Unit and 50mm Bore Insert
$230.34 ex VAT
$230.34 ex VAT
Sale Sold out

In stock

Price Break
10+ $154.29
20+ $145.62
30+ $143.89
40+ $142.15
50+ $140.42
75+ $138.68
100+ $130.02
200+ $128.28
250+ $126.55
500+ $124.82
1000+ $121.35

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
RHP - High Quality
Inside Diameter:
50mm
Style:
MST
Technical
Bore 50mm
L 182mm
L1 114mm
L2 19mm
L3 32mm
L4 97.5mm
L5 70mm
H 146mm
H1 101mm
H2 64mm
H3 130mm
N 35mm
A 63.5mm
A1 46.5mm
A2 27mm
B -mm
B5 45mm
s -mm
d1 -mm
d4 75mm
Dynamic load 43500 N
Static load 29200 N
Rec max speed 3100 rpm
Weight 4.2 kg
Insert <a href="advanced_search_result.php?keywords=1055K+insonly">1055K Click Here</a>
Casting group 6
Grease nipple thread 1/4 UNF, 1/4mm x 28 TPI
