SKU: MST3.3/16-RHP

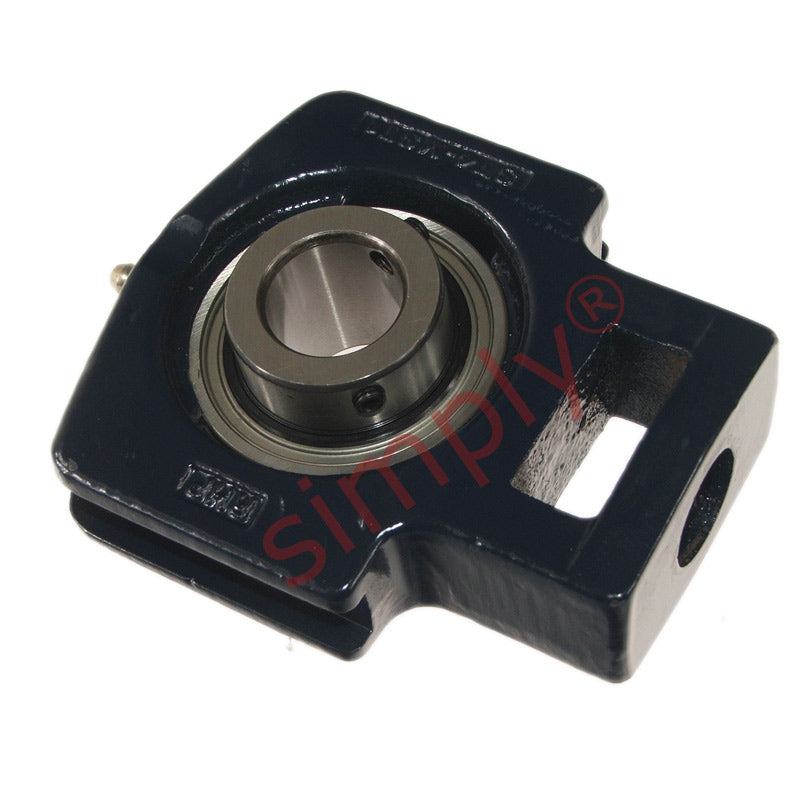

RHP MST3-3/16 Cast Iron Take Up Unit and 3-3/16 inch Bore Insert

RHP MST3-3/16 Cast Iron Take Up Unit and 3-3/16 inch Bore Insert

Out of stock


Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Bore 3-3/16 inch
L 10.256 inch
L1 6.378 inch
L2 1.122 inch
L3 1.496 inch
L4 5.512 inch
L5 3.562 inch
H 7.815 inch
H1 4.882 inch
H2 2.874 inch
H3 6.811 inch
N 1.87 inch
A 3.13 inch
A1 2.697 inch
A2 1.813 inch
B 3.375 inch
B5 - inch
s 1.346 inch
d1 4.174 inch
d4 - inch
Dynamic load 83000 N
Static load 64000 N
Rec max speed 2000 rpm
Weight 13.7 kg
Insert <a href="advanced_search_result.php?keywords=1085-3-3/16G+insonly">1085-3-3/16G Click Here</a>
Casting group 11
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
