SKU: MST50-RHP

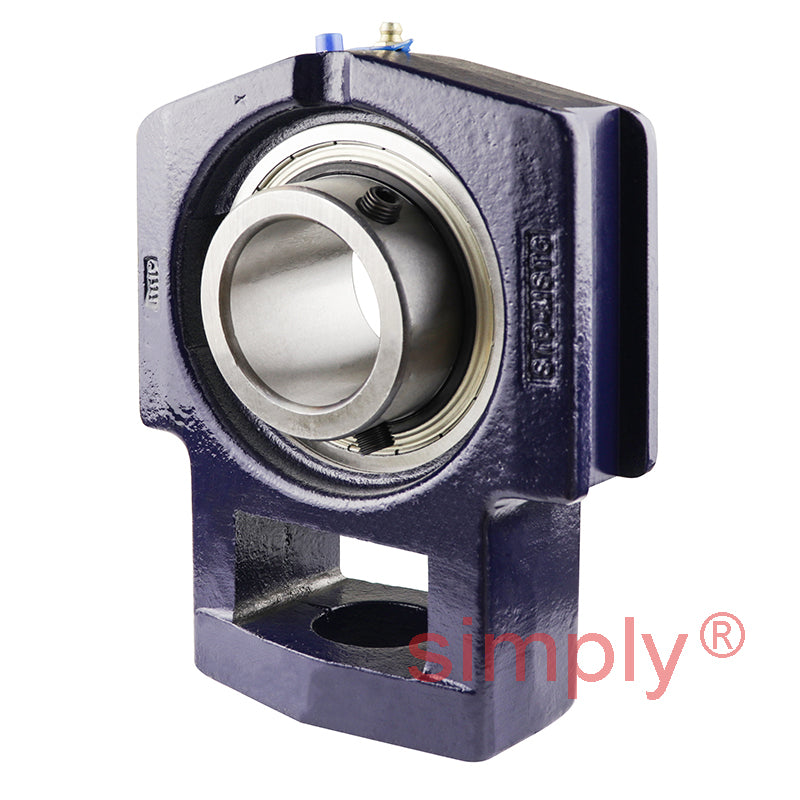

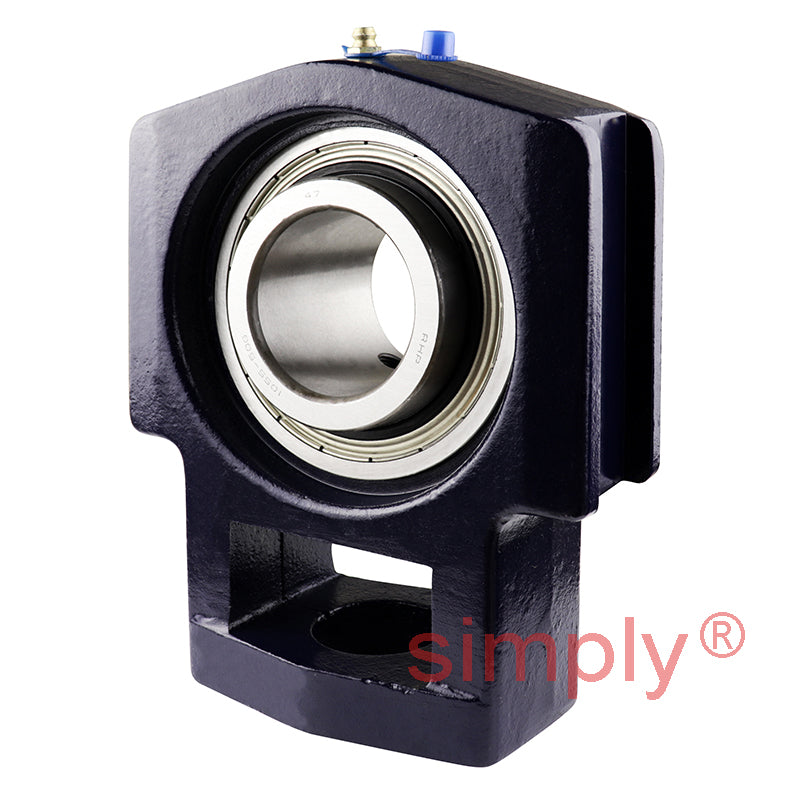

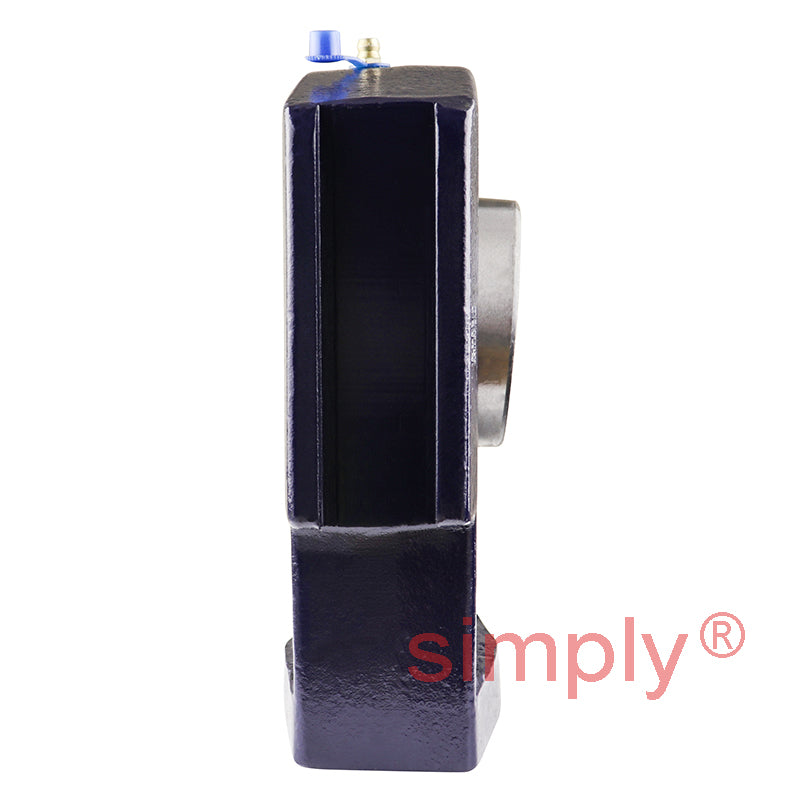

RHP MST50 Cast Iron Take Up Unit and 50mm Bore Insert

Name: RHP MST50 Cast Iron Take Up Unit and 50mm Bore Insert
Brand: RHP
SKU: MST50-RHP
Price: 195.08 USD
Availability: InStock

$195.08 ex VAT

Sale Sold out

In stock

Price Break

10+ $130.67

20+ $123.33

30+ $121.86

40+ $120.40

50+ $118.93

75+ $117.46

100+ $110.12

200+ $108.65

250+ $107.18

500+ $105.71

1000+ $102.78

Return policy

90-Days Free Returns

Low cost shipping

International Delivery

Description

Technical

Bore	50mm
L	182mm
L1	114mm
L2	19mm
L3	32mm
L4	97.5mm
L5	70mm
H	146mm
H1	101mm
H2	64mm
H3	130mm
N	35mm
A	63.5mm
A1	46.5mm
A2	27mm
B	55.55mm
B5	-mm
s	22.28mm
d1	68.81mm
d4	-mm
Dynamic load	43500 N
Static load	29200 N
Rec max speed	3100 rpm
Weight	4.2 kg
Insert	<a href="advanced_search_result.php?keywords=1055-50G+insonly">1055-50G Click Here</a>
Casting group	6
Grease nipple thread	1/4 UNF, 1/4mm x 28 TPI

Reviews
