SKU: MUCFBL204-SNR

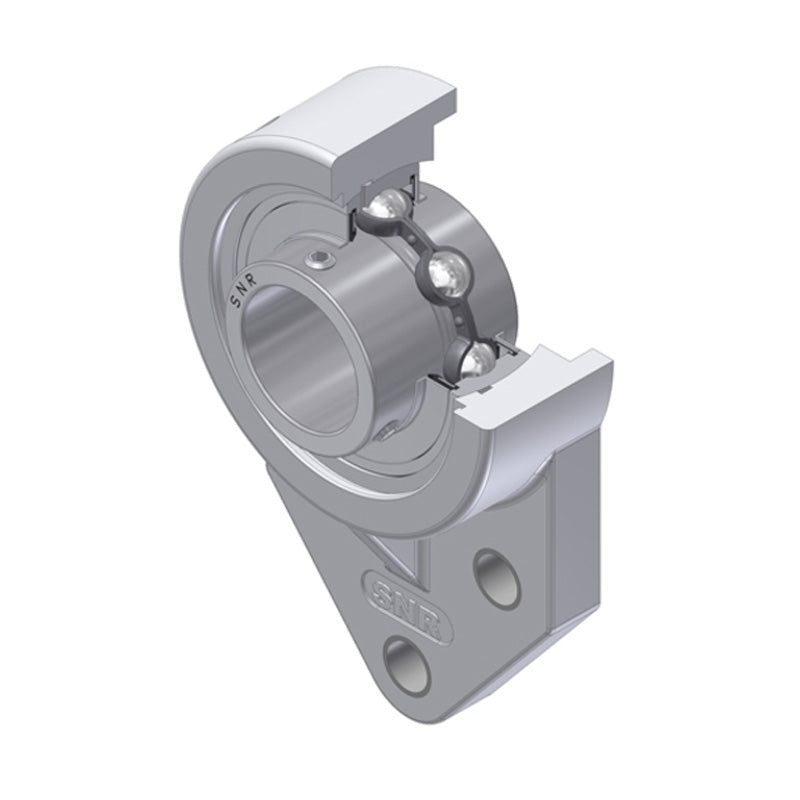

SNR MUCFBL204 Metric Thermoplastic Three Bolt Flanged Bracket Housing Unit with 20mm Bore Insert - Allow 2-3 Days
SNR MUCFBL204 Metric Thermoplastic Three Bolt Flanged Bracket Housing Unit with 20mm Bore Insert - Allow 2-3 Days
Regular price
$73.62
ex VAT
Regular price
Sale price
$73.62
ex VAT
In stock
Price Break
3+
$54.85
4+
$52.63
9+
$51.52
19+
$49.86
49+
$48.75
99+
$45.98
499+
$38.78
999+
$0.00
1999+
$0.00
2999+
$0.00
4999+
$0.00
Quantity
Couldn't load pickup availability
Description
Description
SNR MUCFBL200 Three Bolt Bracket Thermoplastic Housing Unit: This housing is designed for durability in demanding environments. With a sturdy thermoplastic housing and a stainless steel insert ball bearing secured by socket set screws, this unit ensures reliable performance. Its innovative seal with slinger protects against contaminants, while the food-grade grease makes it ideal for food processing applications. Experience exceptional strength and reliability with this versatile housing unit.
Benefits: Durability, food-safe design, easy maintenance
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 20mm
- Temperature Range:
- -20 to 100 deg C
- Style:
- MUCFBL
- Colour:
- White
- Bolt Hole Centres:
- 38.1mm = 1.5 (1-1/2) inch
Technical
Technical

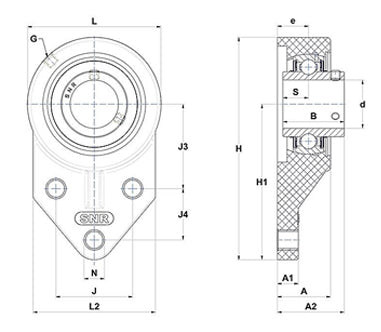

| Bore | 20mm |
|---|---|
| A - Housing height | 26.5mm |
| A1 - Housing foot height / flange height | 11.4mm |
| A2 - Total height from mounting surface | 33.7mm |
| B - Width of Inner Ring | 31mm |
| d - Shaft diameter | 20mm |
| e - Distance mounting surface to bearing centre | 15.4mm |
| G - Grease fitting | 1/4-28 inch |
| H - Housing length, width or diameter | 108mm |
| H1 - Distance housing side to centre of bearing insert | 76.2mm |
| J - Mounting holes distance | 38.1mm |
| J3 - Distance mounting hole to bearing centre | 42.9mm |
| J4 - Mounting hole distance | 22.2mm |
| L - Housing width / diameter | 63.5mm |
| L2 - Housing flange width | 62mm |
| N - Mounting hole dimension | 10.7mm |
| S - Distance front side/bearing centre | 12.7mm |
| C - Dynamic load rating | 10.9 kN |
| C0 - Static load rating | 5.3 kN |
| Operating temperature min. | -20 Deg C |
| Operating temperature max. | 100 Deg C |
| Mass | 0.26kg |
| Recommended tightening torque for set screw | 3.9 Nm |
