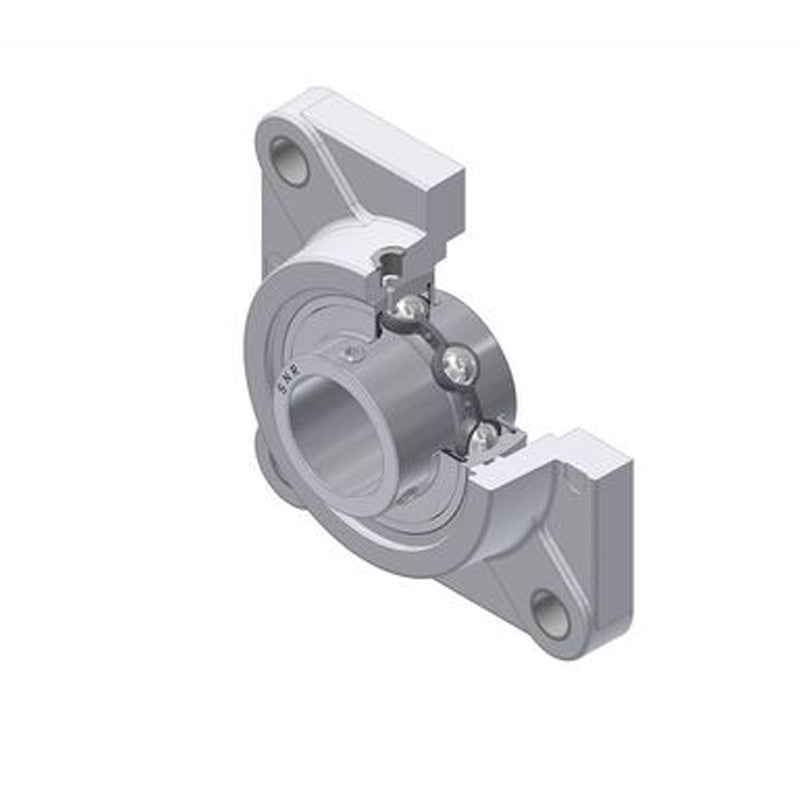

SNR MUCFPL208 Metric Thermoplastic Four Bolt Square Flanged Bracket Housing Unit with 40mm Bore Insert - Allow 2-3 Days
SNR MUCFPL208 Metric Thermoplastic Four Bolt Square Flanged Bracket Housing Unit with 40mm Bore Insert - Allow 2-3 Days
Regular price
$147.27
ex VAT
Regular price
Sale price
$147.27
ex VAT
In stock
Price Break
3+
$109.71
4+
$105.28
9+
$103.06
19+
$99.74
49+
$97.52
99+
$91.98
499+
$77.57
999+
$0.00
1999+
$0.00
2999+
$0.00
4999+
$0.00
Quantity
Couldn't load pickup availability
Description
Description
SNR MUCFPL200 Four Bolt Square Thermoplastic Housing Unit: This housing is designed for durability in demanding environments. With a sturdy thermoplastic housing and a stainless steel insert ball bearing secured by socket set screws, this unit ensures reliable performance. Its innovative seal with slinger protects against contaminants, while the food-grade grease makes it ideal for food processing applications. Experience exceptional strength and reliability with this versatile housing unit.
Benefits: Durability, food-safe design, easy maintenance
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 40mm
- Temperature Range:
- -20 to 100 deg C
- Style:
- MUCFPL
- Colour:
- White
- Bolt Hole Centres:
- 102.0mm
Technical
Technical
| Bore | 40mm |
|---|---|
| A - Housing height | 37.5mm |
| A1 - Housing foot height / flange height | 17mm |
| A2 - Total height from mounting surface | 53.2mm |
| B - Width of Inner Ring | 49.2mm |
| d - Shaft diameter | 40mm |
| e - Distance mounting surface to bearing centre | 23mm |
| G - Grease fitting | 1/4-28 inch |
| J - Mounting holes distance | 102mm |
| L - Housing width / diameter | 130mm |
| N - Mounting hole dimension | 14mm |
| S - Distance front side/bearing centre | 19mm |
| C - Dynamic load rating | 24.9 kN |
| C0 - Static load rating | 14.3 kN |
| Operating temperature min. | -20 Deg C |
| Operating temperature max. | 100 Deg C |
| Mass | 0.97kg |
| Recommended tightening torque for set screw | 8.3 Nm |
