SKU: MUCNFL204-SNR

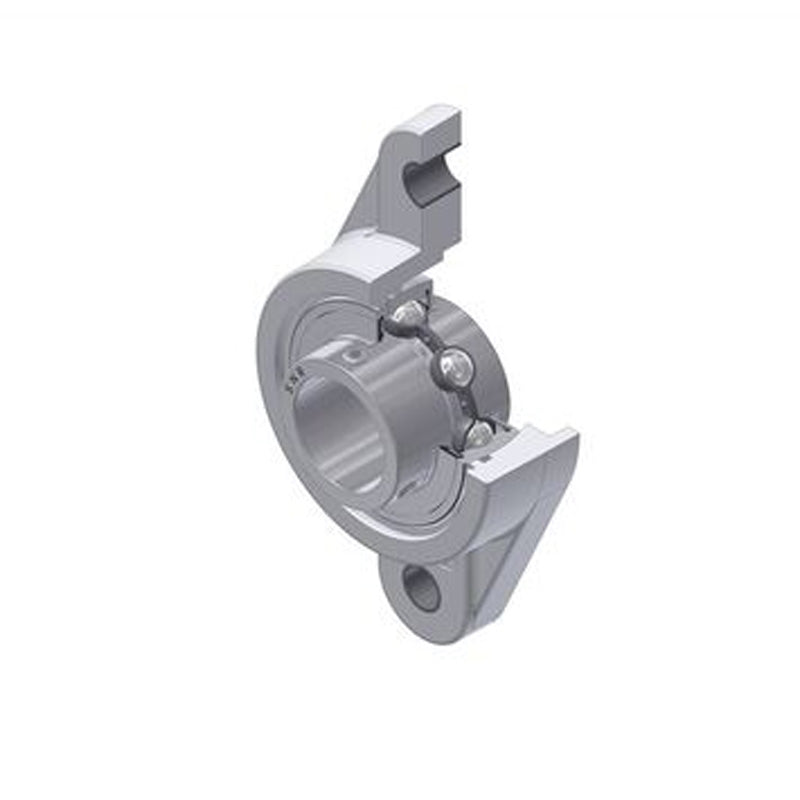

SNR MUCNFL204 Metric Thermoplastic Two Bolt Oval Flanged Bracket Housing Unit with 20mm Bore Insert - Allow 2-3 Days

SNR MUCNFL204 Metric Thermoplastic Two Bolt Oval Flanged Bracket Housing Unit with 20mm Bore Insert - Allow 2-3 Days
Regular price $73.63 ex VAT
Regular price Sale price $73.63 ex VAT
Sale Sold out

In stock

Price Break
3+ $54.86
4+ $52.64
9+ $51.53
19+ $49.87
49+ $48.76
99+ $45.99
499+ $38.79
999+ $0.00
1999+ $0.00
2999+ $0.00
4999+ $0.00
Quantity

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Bore 20mm
A - Housing height 26.5mm
A1 - Housing foot height / flange height 11.4mm
A2 - Total height from mounting surface 33.7mm
B - Width of Inner Ring 31mm
d - Shaft diameter 20mm
e - Distance mounting surface to bearing centre 15.4mm
G - Grease fitting 1/4-28 inch
H - Housing length, width or diameter 113mm
J - Mounting holes distance 90mm
L - Housing width / diameter 64.8mm
N - Mounting hole dimension 11mm
S - Distance front side/bearing centre 12.7mm
C - Dynamic load rating 10.9 kN
C0 - Static load rating 5.3 kN
Operating temperature min. -20 Deg C
Operating temperature max. 100 Deg C
Mass 0.25kg
Recommended tightening torque for set screw 3.9 Nm
