SKU: MUCNFL206-19-SNR

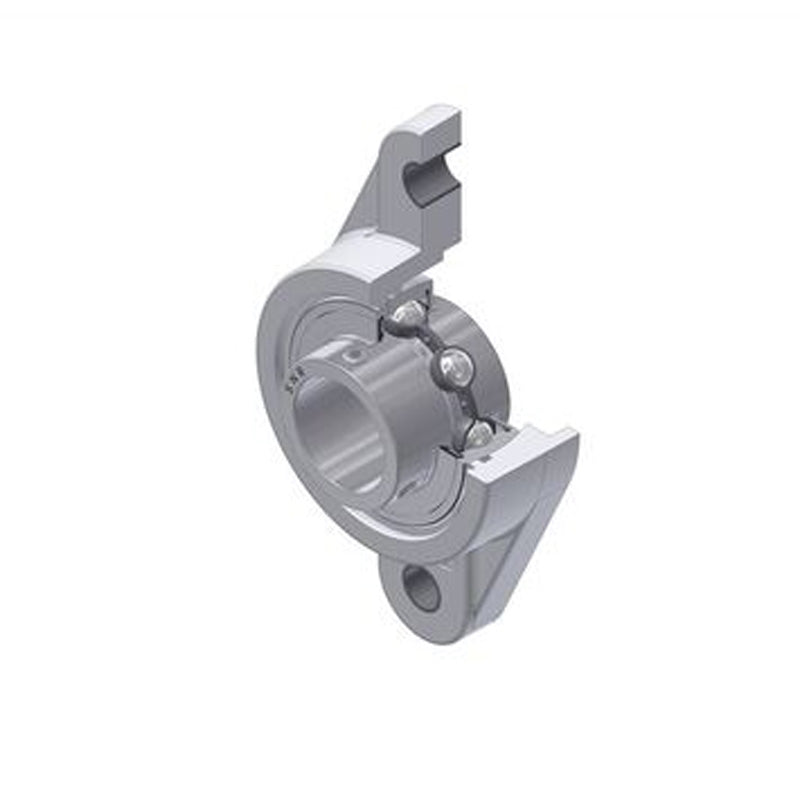

SNR MUCNFL206-19 Imperial Thermoplastic Two Bolt Oval Flanged Bracket Housing Unit with 1-3/16 inch Bore Insert - Allow 2-3 Days

SNR MUCNFL206-19 Imperial Thermoplastic Two Bolt Oval Flanged Bracket Housing Unit with 1-3/16 inch Bore Insert - Allow 2-3 Days
Regular price $103.03 ex VAT
Regular price Sale price $103.03 ex VAT
Sale Sold out

In stock

Price Break
3+ $76.75
4+ $73.65
9+ $72.10
19+ $69.78
49+ $68.23
99+ $64.35
499+ $54.27
999+ $0.00
1999+ $0.00
2999+ $0.00
4999+ $0.00
Quantity

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Bore 1-3/16 inch
A - Housing height 30.5mm
A1 - Housing foot height / flange height 13.3mm
A2 - Total height from mounting surface 41.2mm
B - Width of Inner Ring 38.1mm
d - Shaft diameter 30.163mm
e - Distance mounting surface to bearing centre 19mm
G - Grease fitting 1/4-28 inch
H - Housing length, width or diameter 148mm
J - Mounting holes distance 117mm
L - Housing width / diameter 80mm
N - Mounting hole dimension 11mm
S - Distance front side/bearing centre 15.9mm
C - Dynamic load rating 16.7 kN
C0 - Static load rating 9 kN
Operating temperature min. -20 Deg C
Operating temperature max. 100 Deg C
Mass 0.448kg
Recommended tightening torque for set screw 3.9 Nm
