SKU: MUCNFL206-20-SNR

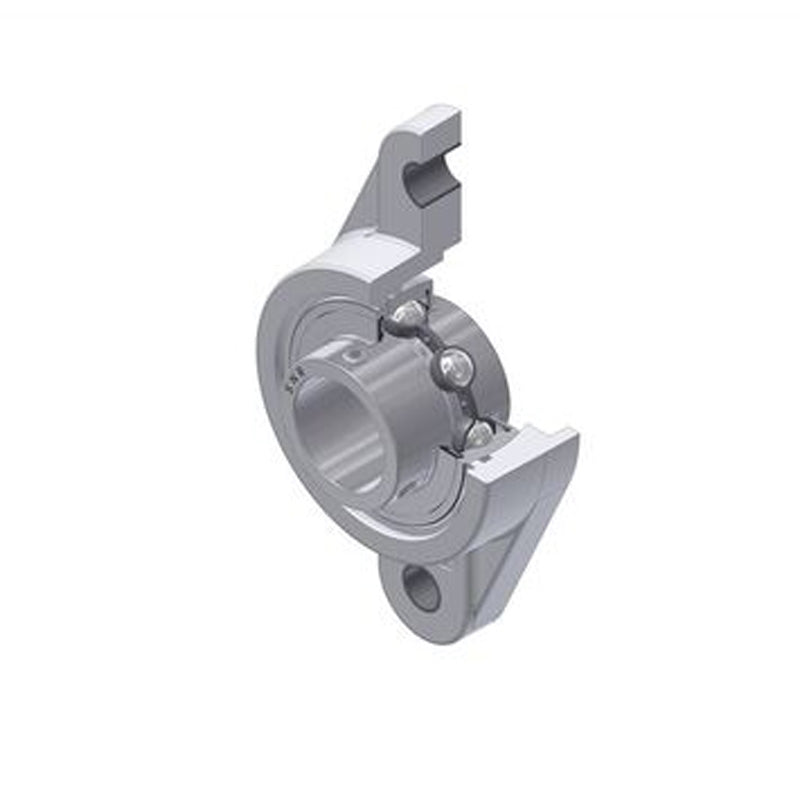

SNR MUCNFL206-20 Imperial Thermoplastic Two Bolt Oval Flanged Bracket Housing Unit with 1-1/4 inch Bore Insert - Allow 2-3 Days
SNR MUCNFL206-20 Imperial Thermoplastic Two Bolt Oval Flanged Bracket Housing Unit with 1-1/4 inch Bore Insert - Allow 2-3 Days
Regular price
$103.03
ex VAT
Regular price
Sale price
$103.03
ex VAT
In stock
Price Break
3+
$76.75
4+
$73.65
9+
$72.10
19+
$69.78
49+
$68.23
99+
$64.35
499+
$54.27
999+
$0.00
1999+
$0.00
2999+
$0.00
4999+
$0.00
Quantity
Couldn't load pickup availability
Share this product
Description
Description
SNR MUCNFL200 Two Bolt Oval Thermoplastic Housing Unit: This housing is designed for durability in demanding environments. With a sturdy thermoplastic housing and a stainless steel insert ball bearing secured by socket set screws, this unit ensures reliable performance. Its innovative seal with slinger protects against contaminants, while the food-grade grease makes it ideal for food processing applications. Experience exceptional strength and reliability with this versatile housing unit.
Benefits: Durability, food-safe design, easy maintenance
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 31.75mm = 1.25 (1-1/4) inch
- Temperature Range:
- -20 to 100 deg C
- Style:
- MUCNFL
- Colour:
- White
- Bolt Hole Centres:
- 117.0mm
Technical
Technical
| Bore | 1-1/4 inch |
|---|---|
| A - Housing height | 30.5mm |
| A1 - Housing foot height / flange height | 13.3mm |
| A2 - Total height from mounting surface | 41.2mm |
| B - Width of Inner Ring | 38.1mm |
| d - Shaft diameter | 31.75mm |
| e - Distance mounting surface to bearing centre | 19mm |
| G - Grease fitting | 1/4-28 inch |
| H - Housing length, width or diameter | 148mm |
| J - Mounting holes distance | 117mm |
| L - Housing width / diameter | 80mm |
| N - Mounting hole dimension | 11mm |
| S - Distance front side/bearing centre | 15.9mm |
| C - Dynamic load rating | 16.7 kN |
| C0 - Static load rating | 9 kN |
| Operating temperature min. | -20 Deg C |
| Operating temperature max. | 100 Deg C |
| Mass | 0.448kg |
| Recommended tightening torque for set screw | 3.9 Nm |
