SKU: N.205.ETVP2/C3-FAG

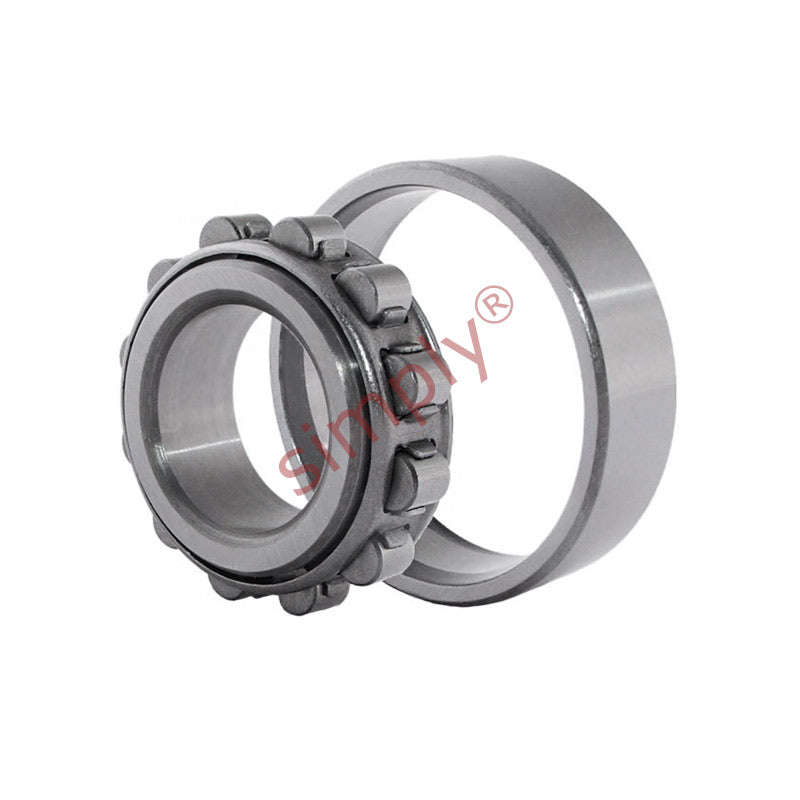

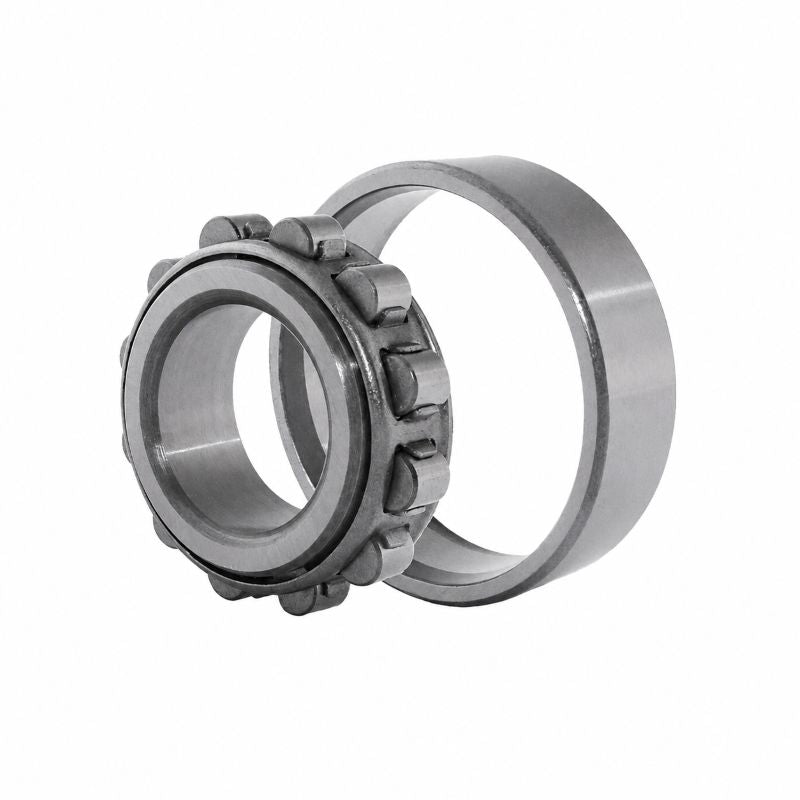

FAG N205-E-TVP2-C3 X-life Cylindrical Roller Bearing with Cage 25x52x15mm

Name: FAG N205-E-TVP2-C3 X-life Cylindrical Roller Bearing with Cage 25x52x15mm
Brand: FAG
SKU: N.205.ETVP2/C3-FAG
Price: 48.66 USD
Availability: InStock

$48.66 ex VAT

Sale Sold out

In stock

Price Break

10+ $32.59

19+ $30.76

29+ $30.39

39+ $30.03

49+ $29.66

74+ $29.30

99+ $27.47

199+ $27.10

249+ $26.73

499+ $26.37

999+ $25.63

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

N Series Single Row Cylindrical Roller Bearings: The inner ring of this type has two integral flanges around which the rollers are assembled, the outer raceway has no flanges and is removable allowing ease of assembly and axial movements in either direction.
Benefits: Axial location, ease of assembly and fitting

Brand / Quality:: FAG - High Quality
Inside Diameter:: 25mm
Outside Diameter:: 52mm
Width:: 15mm
Seals / Shields:: None
Clearance:: * Standard

Technical

d	25mm
D	52mm
B	15mm
r min	1mm
r1 min	0.6mm
s	1.3mm
E	46.5mm
F	31.5mm
d1	34.7mm
da min	29mm
Da max	46mm
Db min	48mm
Dc max	45mm
ra max	1mm
ra1 max	0.6mm
Dynamic load	34500 N
Static load	27500 N
Fatigue limit load	4350 N
Limiting speed	15000 rpm
Reference speed	11800 rpm
Weight	0.135 kg
