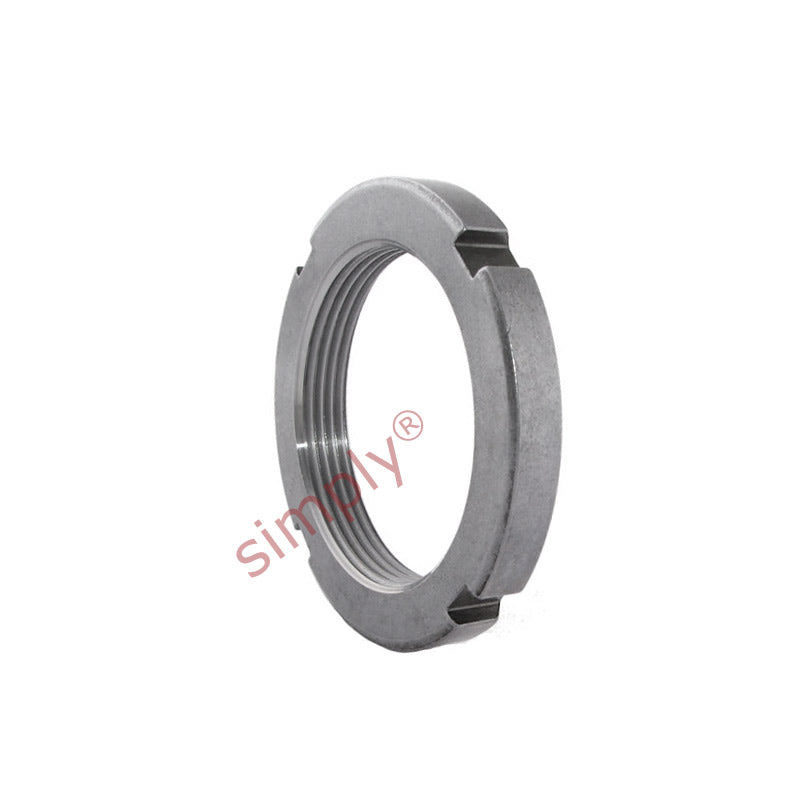

• Premier Budget N07 Imperial Lock Nut (Lock Washer Type) 1.376x2.068x0.448 inch
1 1

SKU: N07-EU

Premier Budget N07 Imperial Lock Nut (Lock Washer Type) 1.376x2.068x0.448 inch

Premier Budget N07 Imperial Lock Nut (Lock Washer Type) 1.376x2.068x0.448 inch
$8.07 ex VAT
$8.07 ex VAT
Sale Sold out

In stock

Price Break
3+ $5.40
5+ $5.10
9+ $5.04
19+ $4.98
49+ $4.92
74+ $4.86
99+ $4.55
199+ $4.49
249+ $4.43
499+ $4.37
999+ $4.25

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Premier Budget - Good Quality
Inside Diameter:
34.95mm = 1.376 inch
Outside Diameter:
52.53mm = 2.068 inch
Width:
11.38mm = 0.448 inch
Technical
G 1.376 inch
Threads per inch 18
d<sub>1</sub> 1.813 inch
d<sub>3</sub> max 2.068 inch
B 0.448 inch
b 0.178 inch
h 0.104 inch
Static axial load carrying capacity 16411 lbf
Mass 0.0998 kg
Associated spanner <a href="advanced_search_result.php?search_in_description=1&keywords=HN7+lock+spanner">HN7 [Click Here]</a>
Associated locking device <a href="advanced_search_result.php?search_in_description=1&keywords=W7+lock+tab+washer">W7 [Click Here]
