• Premier Budget N08 Imperial Lock Nut (Lock Washer Type) 1.563x2.255x0.448 inch
1 1

SKU: N08-EU

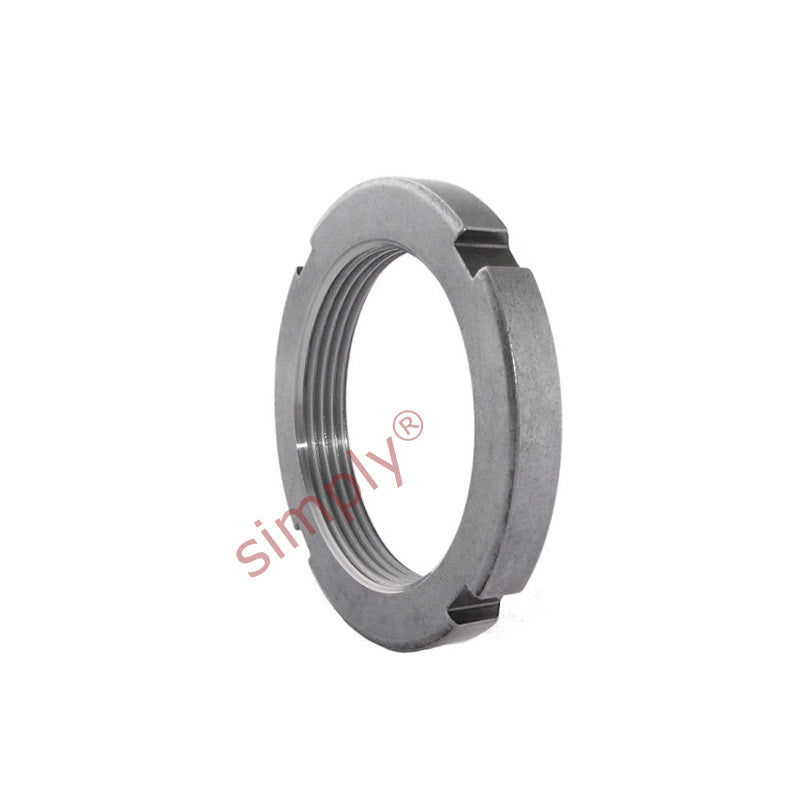

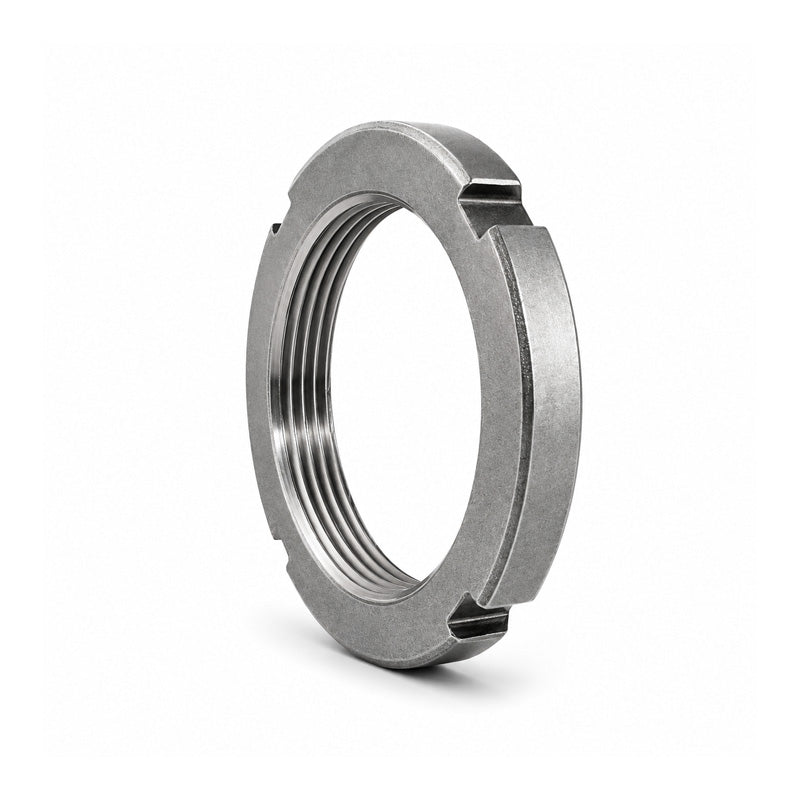

Premier Budget N08 Imperial Lock Nut (Lock Washer Type) 1.563x2.255x0.448 inch

Premier Budget N08 Imperial Lock Nut (Lock Washer Type) 1.563x2.255x0.448 inch
$8.76 ex VAT
$8.76 ex VAT
Sale Sold out

In stock

Price Break
3+ $5.86
5+ $5.53
9+ $5.47
19+ $5.40
49+ $5.34
74+ $5.27
99+ $4.94
199+ $4.87
249+ $4.81
499+ $4.74
999+ $4.61

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Premier Budget - Good Quality
Inside Diameter:
39.7mm = 1.563 inch
Outside Diameter:
57.28mm = 2.255 inch
Width:
11.38mm = 0.448 inch
Technical
G 1.563 inch
Threads per inch 18
d<sub>1</sub> 2 inch
d<sub>3</sub> max 2.255 inch
B 0.448 inch
b 0.24 inch
h 0.104 inch
Static axial load carrying capacity 17310 lbf
Mass 0.1134 kg
Associated spanner <a href="advanced_search_result.php?search_in_description=1&keywords=HN8-9+lock+spanner">HN8-9 [Click Here]</a>
Associated locking device <a href="advanced_search_result.php?search_in_description=1&keywords=W8+lock+tab+washer">W8 [Click Here]
