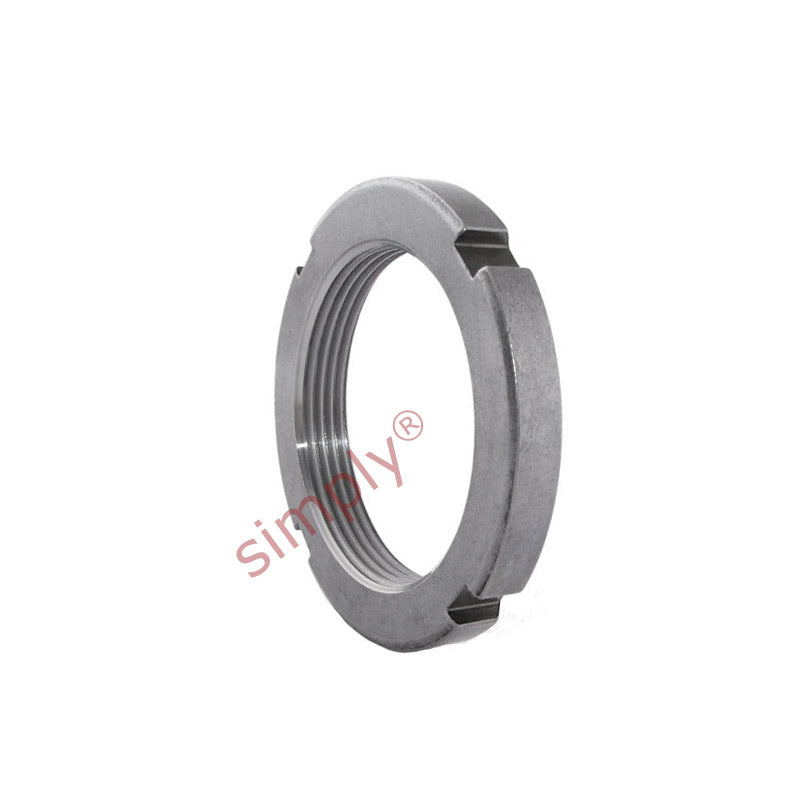

• Premier Budget N10 Imperial Lock Nut (Lock Washer Type) 1.967x2.693x0.51 inch
1 1

SKU: N10-EU

Premier Budget N10 Imperial Lock Nut (Lock Washer Type) 1.967x2.693x0.51 inch

Premier Budget N10 Imperial Lock Nut (Lock Washer Type) 1.967x2.693x0.51 inch
$8.76 ex VAT
$8.76 ex VAT
Sale Sold out

In stock

Price Break
3+ $5.86
5+ $5.53
9+ $5.47
19+ $5.40
49+ $5.34
74+ $5.27
99+ $4.94
199+ $4.87
249+ $4.81
499+ $4.74
999+ $4.61

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Premier Budget - Good Quality
Inside Diameter:
49.96mm = 1.967 inch
Outside Diameter:
68.4mm = 2.693 inch
Width:
12.95mm = 0.51 inch
Technical
G 1.967 inch
Threads per inch 18
d<sub>1</sub> 2.438 inch
d<sub>3</sub> max 2.693 inch
B 0.51 inch
b 0.24 inch
h 0.104 inch
Static axial load carrying capacity 22706 lbf
Mass 0.1678 kg
Associated spanner <a href="advanced_search_result.php?search_in_description=1&keywords=HN10-11+lock+spanner">HN10-11 [Click Here]</a>
Associated locking device <a href="advanced_search_result.php?search_in_description=1&keywords=W10+lock+tab+washer">W10 [Click Here]
